Hyundai Genesis (DH): General Information / Special Service Tools

Hyundai Genesis (DH) 2013-2016 Service Manual / Suspension System / General Information / Special Service Tools

Special Service Tools
Tool Name / Number
Illustration
Description
Strut spring compressor
09546-26000

Compression of coil spring
Ball joint remover
09568-2J100

Removal of ball joint
Engine support fixture (bar)
09200-3N000

Removal and installation of the transaxle.
Except lower supporter, use beam only with new engine support fixture supporter (SST No.:09200-2S100)
Engine support fixture (supporter)
09200-2S100

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-3N000) with the supporter (SST No. : 09200-2S200)
Engine support fixture (supporter)
09200-2S200

Removal and installation of the transaxle.
Use this beam (SST No. : 09200-3N000) with the adapter (SST No. : 09200-2S100)

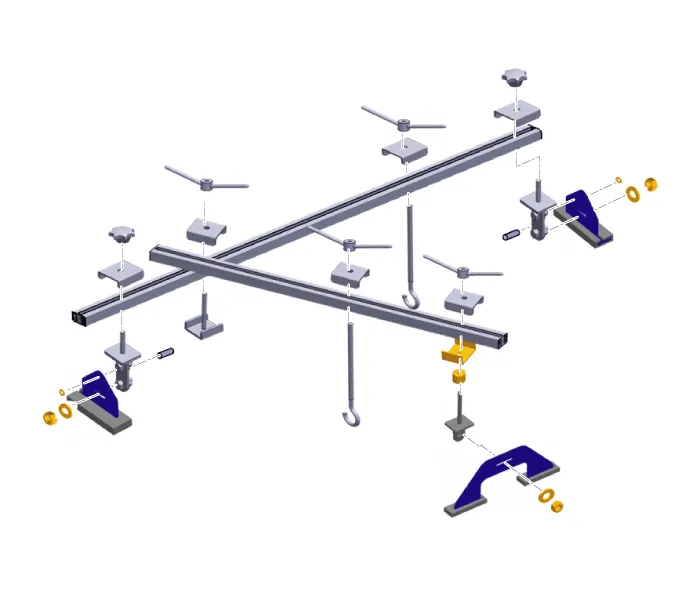

? Engine support fixture assembly drawing

    Specifications Front Suspension ItemSpecificationSuspension typeMulti linkShock absorberTypeHPD (High Performance Damper)ECS(Electronic Control Suspension) Rear Suspension ItemSpecificationSuspension typeMulti linkShock absorberTypeHPD (High Performance Damper)ECS(Electronic Control Suspension) Wheel & Tire Item Specification FrontRearWheel (inch)188.

    Troubleshooting Trouble symptomProbable causeRemedyHard steeringImproper front wheel alignmentRepairExcessive turning resistance of lower arm ball jointReplaceFlat tireAdjustNo power assistRepair or ReplacePoor return of steering wheel to centerImproper front wheel alignmentRepairPoor ride qualityImproper front wheel alignmentRepairDamaged shock absorberRepair or ReplaceVaried or damaged stabilizerReplaceVaried or damaged coil springReplaceWorn lower arm bushingReplaceAbnormal tire wearImproper front wheel alignmentRepairImproper tire inflation pressureAdjustWorn of shock absorberReplaceWanderingImproper front wheel alignmentRepairPoor turning resistance of lower arm ball jointRepairLoose or worn lower arm bushingRe-tighten or ReplaceVehicle pulls to one sideImproper front wheel alignmentRepairExcessive turning resistance of lower arm ball jointReplaceVaried or damaged coil springReplaceBent lower armReplaceSteering wheel shimmyImproper front wheel alignmentRepairExcessive turning resistance of lower arm ball jointReplaceVaried or damaged stabilizerReplaceWorn lower arm bushingReplaceWorn of shock absorberReplaceVaried or damaged coil springReplaceBottomingBroken or worn springReplaceMalfunction of shock absorberReplace Wheel and tire diagnosisRapid wear at the centerRapid wear at both shouldersWear at one shoulder
