Hyundai Genesis (DH): SRSCM / Side Impact Sensor (SIS) Components and Components Location
| Components |

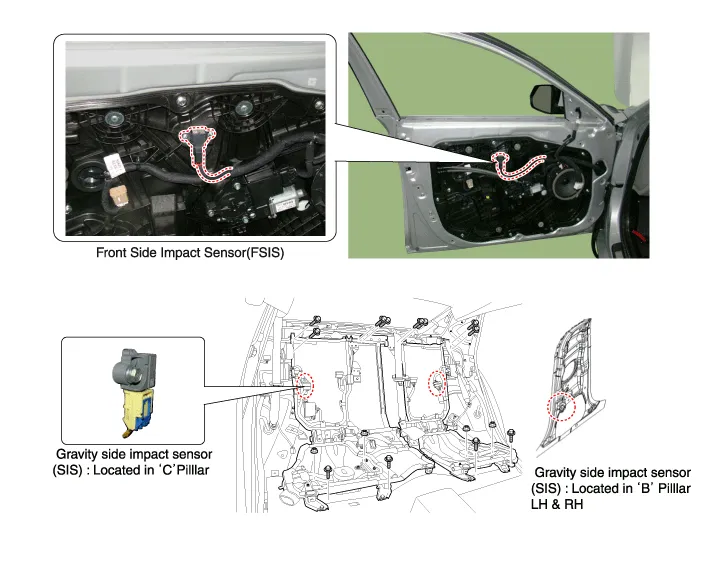

Description The Side Impact Sensor (SIS) system consists of two kinds of side impact sensor which are installed at each center of the front door module (left and right) and two rear sensors which are installed in the rear pillar (left and right).
