Hyundai Genesis (DH): Engine Control System / Fuel Tank Pressure Sensor (FTPS) Schematic Diagrams

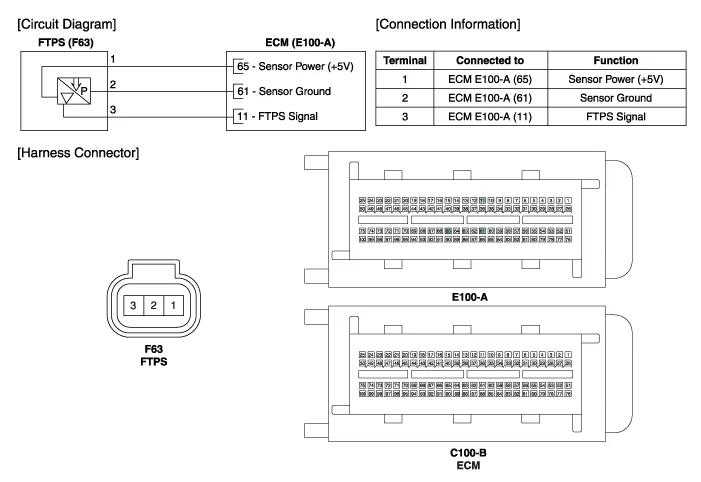

| Circuit Diagram |
Specifications Pressure [kPa (kgf/cm?, in H2O)Output Voltage (V)'-6.67 (-0.068, -26.8)0.502.5'+6.67 (0.068, 26.8)4.5
Inspection 1. Connect the GDS on the Data Link Connector (DLC ). 2. Measure the output voltage of the FTPS. Specification: Refer to "Specification" Removal 1.
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Unit Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the rear bumper. (Refer to Body - "Rear Bumper") 3. Remove the BSD unit (A) after loosening the mounting nuts. Take care not to separate the bracket from rear bumper when removing the BSD sensor.
Hyundai Genesis (DH) 2013-2016 Service Manual: A/C Pressure Transducer Description and Operation
Description The A/C Pressure Transducer (APT) converts the pressure value of high-pressure line into voltage value after measuring it. By converted voltage value, engine ECU controls the cooling fan by operating it at high speed or low speed.
