Hyundai Genesis (DH): Windshield Wiper/Washer / Front Wiper Motor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Windshield Wiper/Washer / Front Wiper Motor Components and Components Location

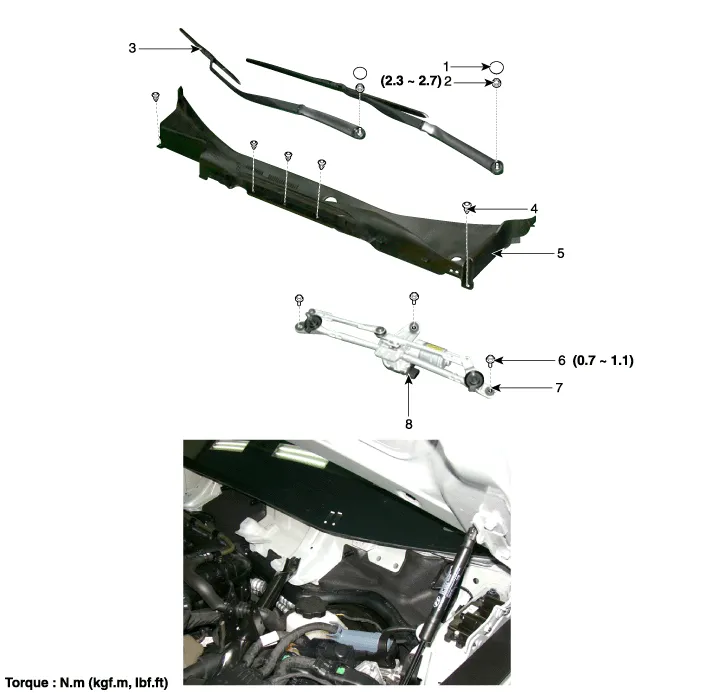

Component Location

1. Cap
2. Nut
3. Wiper arm & blade
4. Rivet
5. Cowl top cover
6. Bolt
7. Wiper motor & linkage assembly
8. Wiper motor connector

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper shroud (A). (Refer to Body - "Steering Column Shroud Panel") 3.

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the windshield wiper arm (A) and blade after removing a nut. 3. If necessary of removing the wiper blade, push both sides of wiper tabs (A) and then remove the wiper blade.
