Hyundai Genesis (DH): Front Bumper / Front Bumper Cover Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Cover Components and Components Location

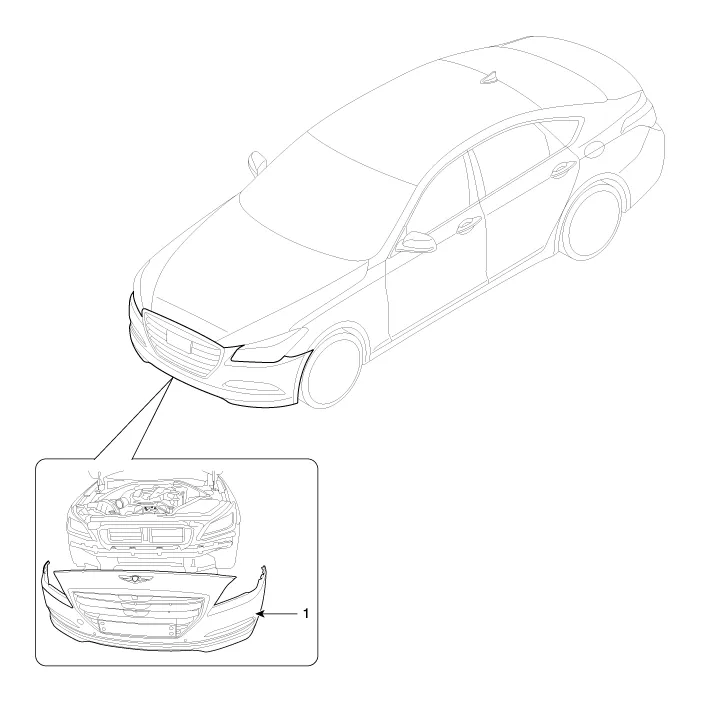

Component Location

1. Front bumper cover


    Components (1) 1. Front bumper cover2. Radiator grille upper cover Components (2) 1. Front bumper grille2. Front bumper grille chrome piece [LH]3.

    Replacement
