Hyundai Genesis (DH): Cylinder Block / Drive Plate Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cylinder Block / Drive Plate Components and Components Location
| Components |

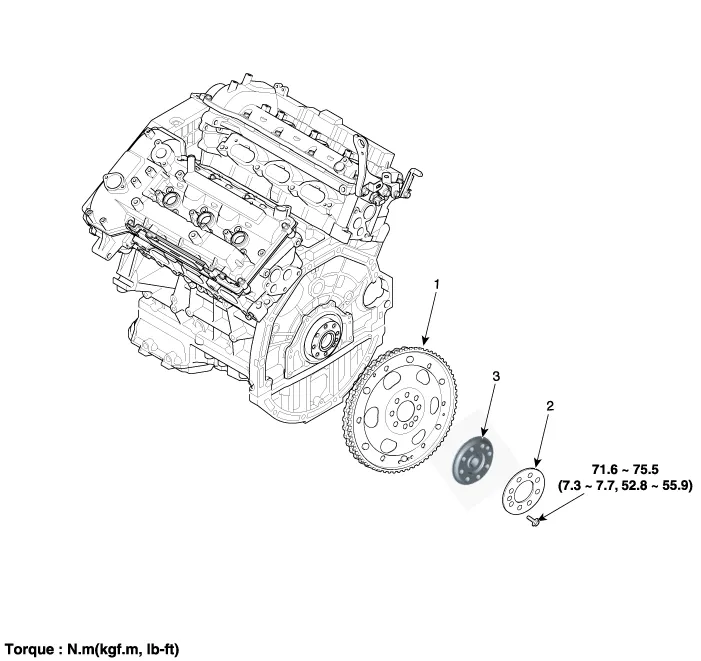

| 1. Drive plate 2. Adapter plate | 3. Crankshaft adapter |
Removal 1. Remove the LH/RH cylinder head assembly. (Refer to Cylinder Head Assembly - "Cylinder Head") 2. Remove the water jacket separator 1# (A) and 2# (B).
Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the automatic transaxle . (Refer to Automatic Transaxle System - "Automatic Transaxle") 3.
