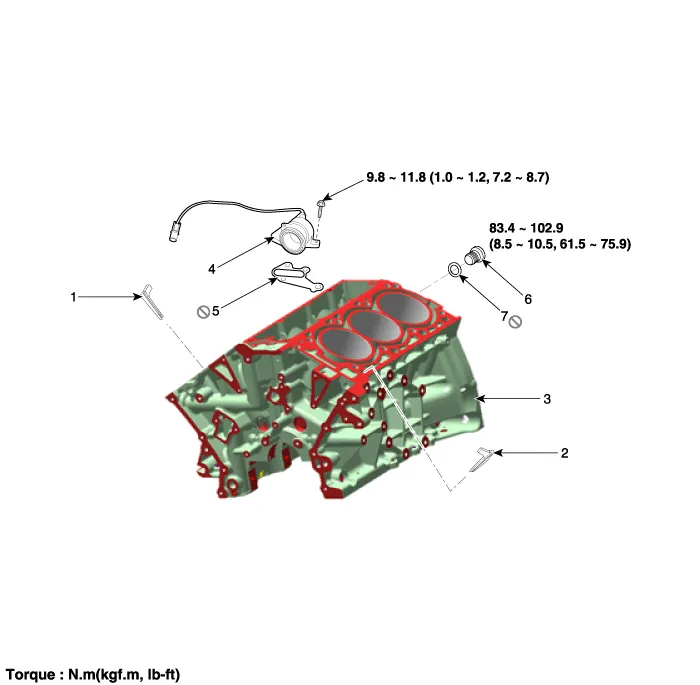

Components

1. Water jacket separator 1#
2. Water jacket separator 2#
3. Cylinder block
4. Oil cover
 5. Oil cover gasket
6. Plug bolt
7. Washer gasket

    Disassembly

    Disassembly
