Hyundai Genesis (DH): Engine Control System / Crankshaft Position Sensor (CKPS) Schematic Diagrams
Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / Crankshaft Position Sensor (CKPS) Schematic Diagrams

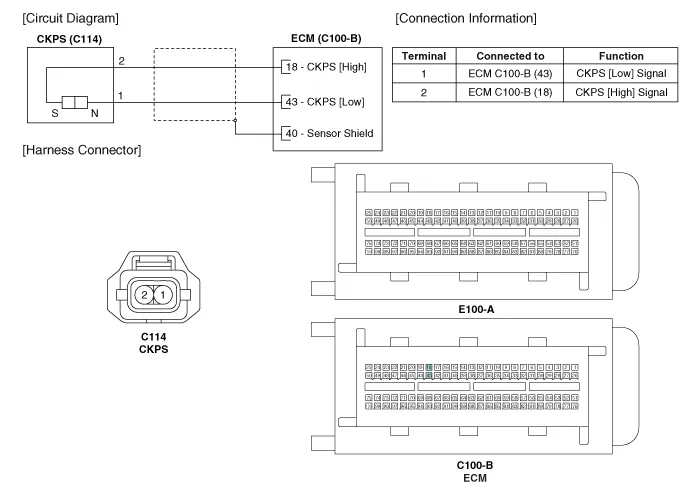

| Circuit Diagram |
Signal Waveform
Inspection 1. Check the signal waveform of the CMPS and CKPS using the GDS. Specification: Refer to
