Hyundai Genesis (DH): Rear Glass Defogger / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Rear Glass Defogger / Components and Components Location

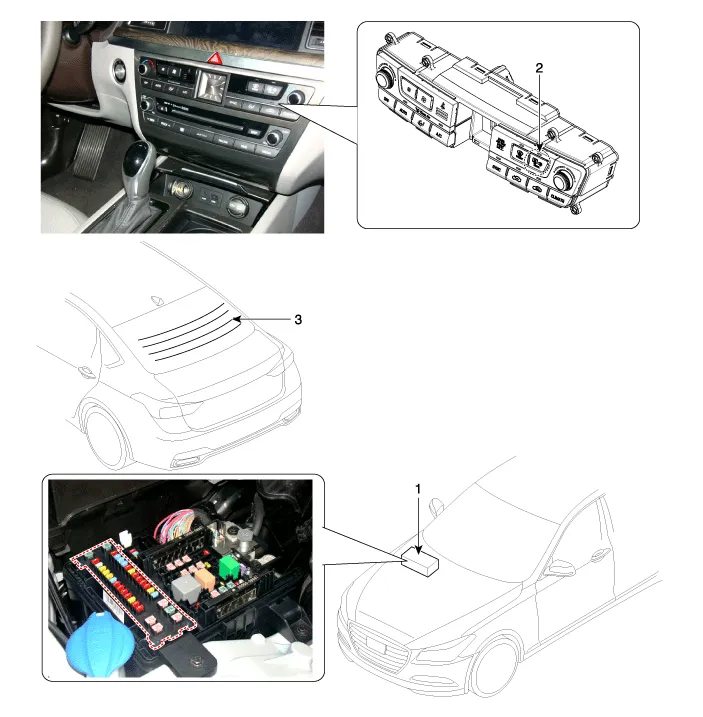

Component Location

1. Rear glass defogger relay (Buil-in Metal core PCB block)
2. Rear glass defogger switch
3. Rear glass defogger

    Inspection     Wrap tin foil around the end of the voltmeter test lead to prevent damaging the heater line. Apply pressure on the tin foil with hand and move the tin foil along the grid line to check for open circuits.
