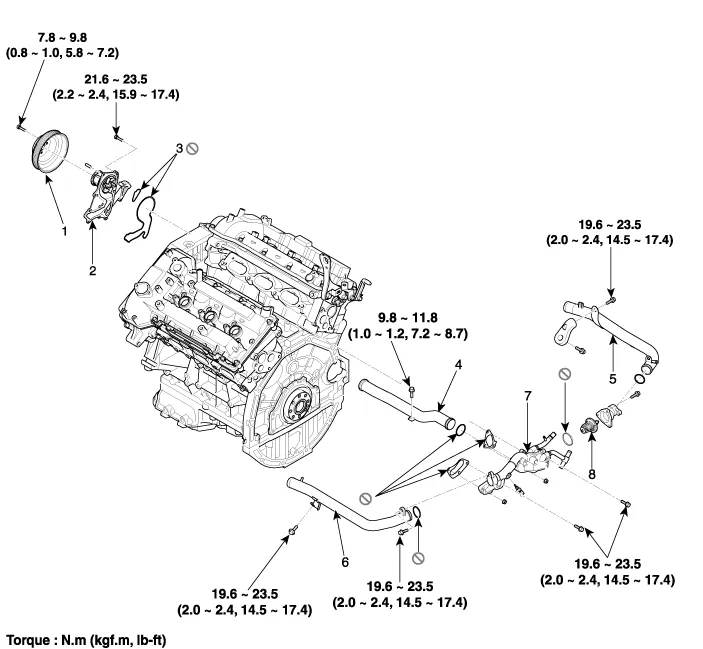

Components

1. Water pump pulley
2. Water pump
3. Water pump gasket
4. Water center pipe
5. Water inlet pipe
6. Water outlet pipe
7. Water temperature control assembly
8. Thermostat

    Replacement and Air Bleeding     Never remove the radiator cap when the engine is hot. A serious scalding could be caused by high-pressure hot fluid escaping from the radiator.
