Hyundai Genesis (DH): Premium AVN System / AUX jack Schematic Diagrams

Circuit Diagram

    Inspection Troubleshooting of the speakers     When handling the speakers: - Do not cause shock to the speakers by dropping or throwing them.

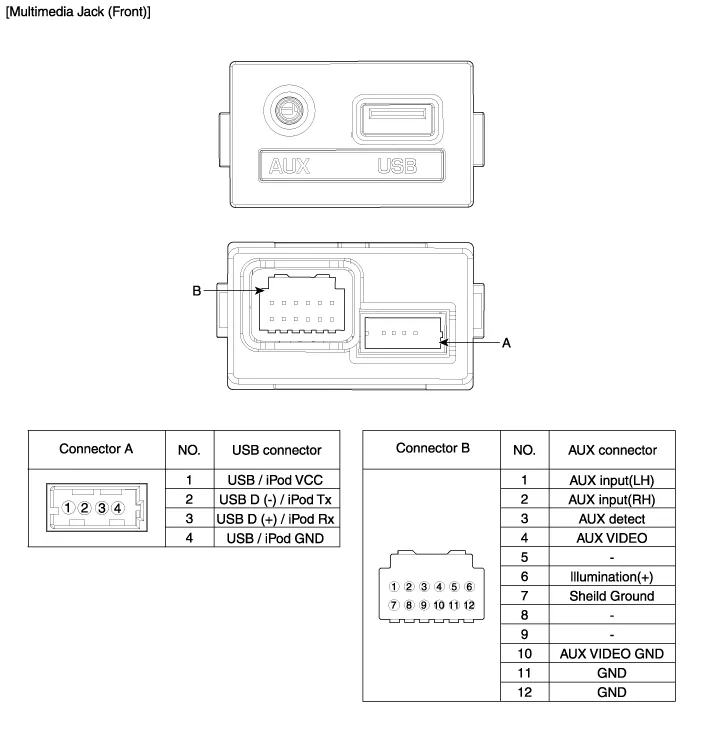

    Description The multimedia jack on the console upper cover is for customers who like to listen to external portable music players like the MP3 and etc.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Description and Operation

    Description BSD is a system that measures the speed of and distance from the following vehicles by using two magnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm (visual and auditory).

    Hyundai Genesis (DH) 2013-2016 Service Manual: Blind Spot Detection Switch Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad") 3. Remove the blind spot detection (BSD) switch (A) after disengaging the mounting clip. Installation 1. Install the crash pad side switch assembly after connecting the connector.
