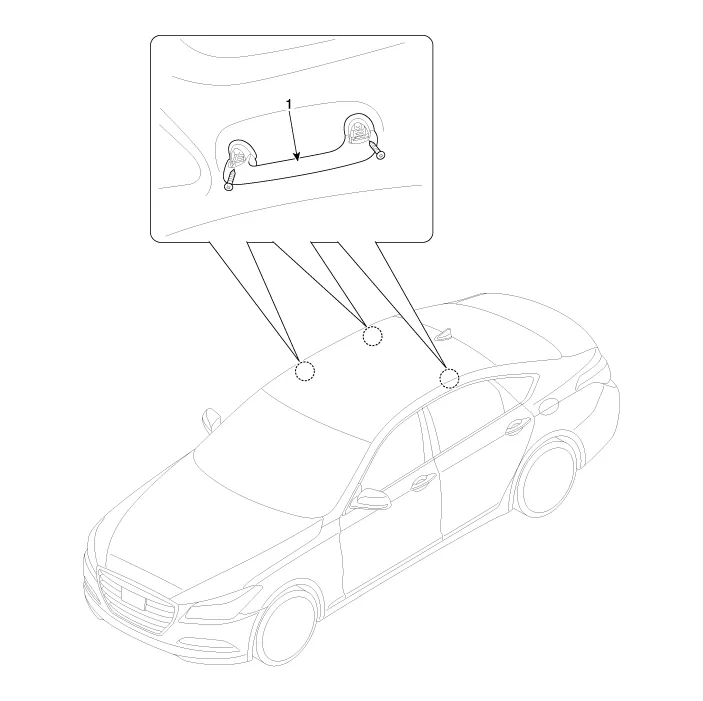

Hyundai Genesis (DH): Roof Trim / Assist Handle Components and Components Location

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Compressor Description and Operation

Description The compressor is the power unit of the A/C system. It is located on the side of engine block and driven by a V-belt of the engine. The compressor changes low-pressure and low-temperature refrigerant gas into high-pressure and high-temperature refrigerant gas.

Hyundai Genesis (DH) 2013-2016 Service Manual: Temperature Control Actuator Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the temperature control actuator connector. 3. Verify that the temperature control actuator operates to the warm (Driver's side) or cool (Passenger's side) position when connecting 12V to terminal 3 and grounding terminal 4.
