Hyundai Genesis: Front Seat / Front Seat Frame Assembly Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the front seat back cover. (Refer to Front Seat - "Front Seat Back Cover")

2.	Remove the front seat cushion cover. (Refer to Front Seat - "Front Seat Cushion Cover")

3.	Remove the mounting bolt (A).

4.	Disconnect the connector (A).

5.	After loosening the mounting bolts, remove the front seat cushion extension cushion modules (B).

6.	After loosening the mounting screws, remove the cushion extension lower cover (A).

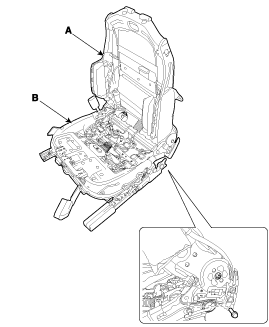

7.	After loosening the mounting bolts, detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

8.

Install in the reverse order of removal. • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly. (Refer to Restraint - "Side Airbag (SAB) Module") • Before service, be fully aware of precautions and service procedure relevant to air bag. (Refer to Restraint - "Side Airbag (SAB) Module")

Front Seat Frame Assembly Components and Components Location

Component Location 1. Front seat back frame assembly2. Front seat cushion frame assembly ...
