The Electronic Control Suspension
(ECS) controls the vehicle suspension
automatically to maximize driving
comfort by taking into account
the driving conditions such as speed,
surface of the road, cornering, stopping
requirements and acceleration.
ECS (Electronic Control

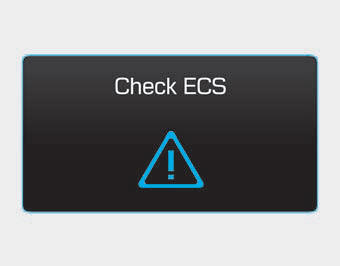

Suspension) malfunction indicator
.jpg)
If the ECS warning message comes
on, you may have a problem with the
ECS system. Have your vehicle
checked by an authorized HYUNDAI
dealer.
Other information:
Circuit Diagram
1.
Circuit diagram
2.
Receiver connector terminals.
3.
Receiver connector function.
No FunctionDescription1BatteryVBAT2IG ONBattery to IG ON3CAN_HighCAN_High4CAN_LowCAN_Low5GroundBattery to ground6--
...
Components Location
1. Input speed sensor2. Middle speed sensor3. Output speed sensor4. E-Module5. Line pressure control solenoid valve6. Damper clutch control solenoid valve7. ON/OFF solenoid valve8. Valve body assembly9. 8LR/B control solenoid valve10. 6/C control solenoid valve11. 27/B contr ...
