| Replacement |
| 1. |
Disconnect the battery (-) terminal. |
| 2. |
Remove the trunk luggage side trim [RH].
(Refer to Body - "Trunk Trim") |
| 3. |
Disconnect the connector and then remove the ECS control unit.
|
| Installation |
| 1. |
Installation in the reverse order of removal. |
| 2. |

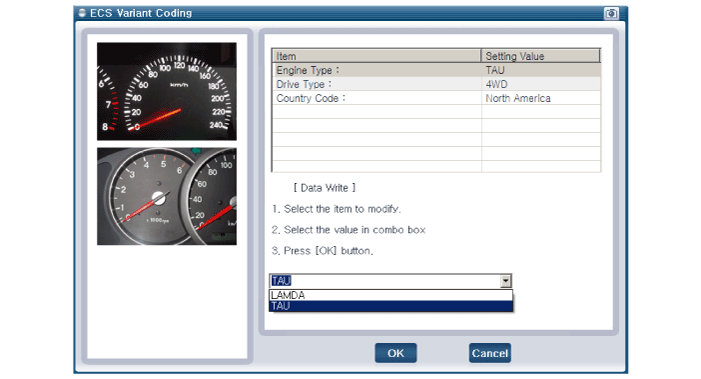

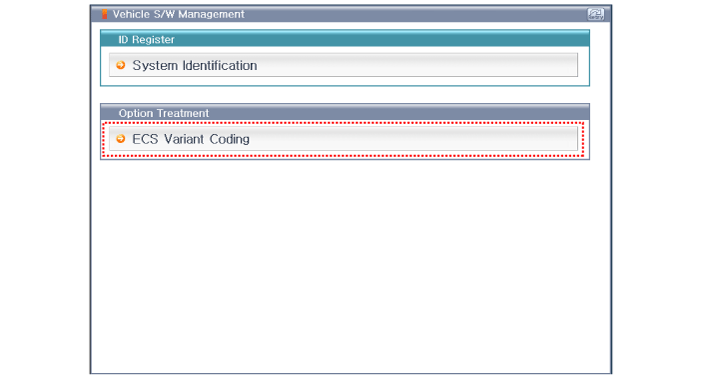

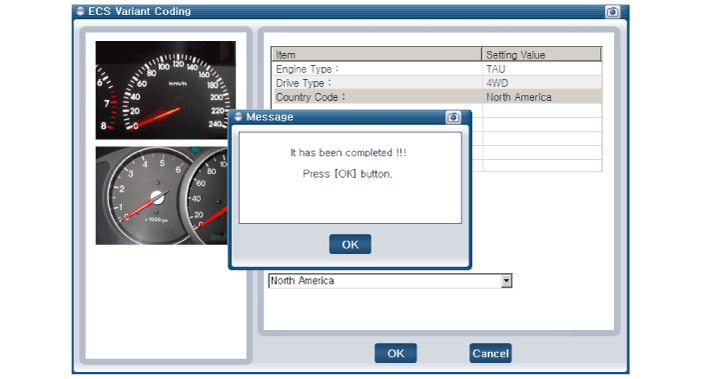

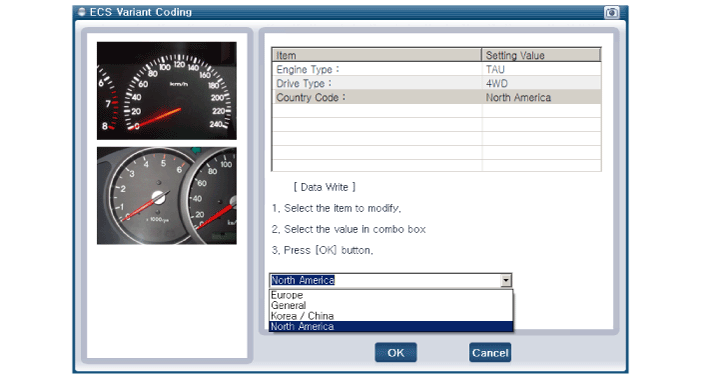

Perform the ESC variant coding.
|
Schematic Diagrams 1. Connector input/output No.DescriptionPin No.Description1Battery(+)20-2Solenoid RL (+)21-3Solenoid RR (+)22-4Solenoid FL (+)23-5Solenoid FR (+)24-6- 25G- sensor power7- 26Body G-sensor signal RR8- 27Body G-sensor signal FL9- 28Wheel G-sensor signal FR10- 29Wheel G-sensor signal FL11- 30Wheel G-sensor signal FR12- 31CAN HIGH 13Ground32-14Solenoid RL (-) 33CAN LOW 15Solenoid RR (-)34-16Solenoid FL (-)35-17Solenoid FR (-)36IGN (+) 18-37-19-38G-Sensor Ground 2.
Replacement Front 1. Loosen the wheel nuts slightly. Raise the vehicle, and make sure it is securely supported. 2. Remove the front wheel and tire (A) from the front hub.
Diagnosis With GDS 1. BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis. 2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.
