Hyundai Genesis: Cylinder Block / Cylinder Block Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Mechanical System / Cylinder Block / Cylinder Block Components and Components Location

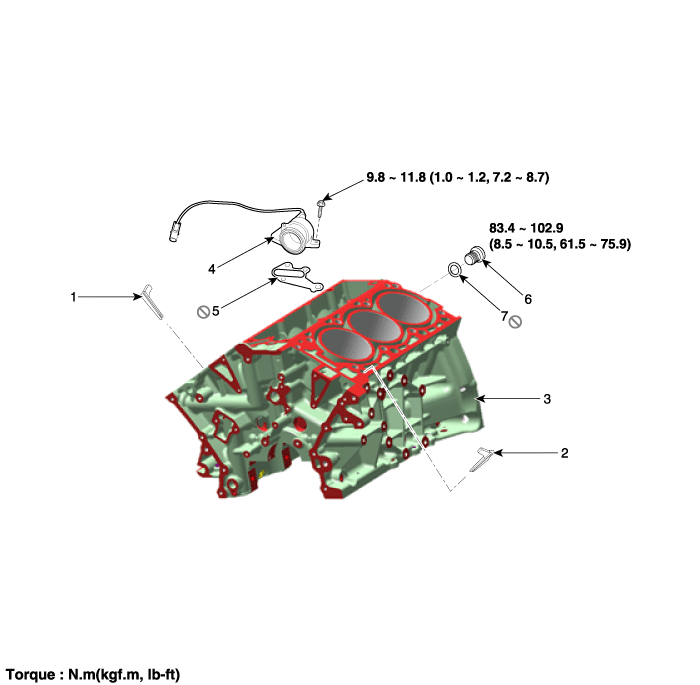

Components

1. Water jacket separator 1#
2. Water jacket separator 2#
3. Cylinder block
4. Oil cover
5. Oil cover gasket
6. Plug bolt
7. Washer gasket
