Hyundai Genesis (DH): Horn / Components and Components Location

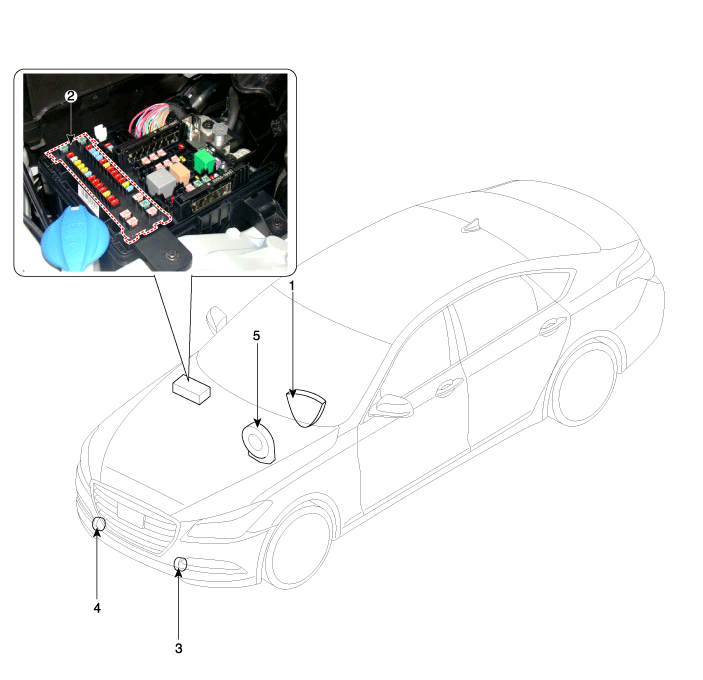

| Component Location |
| 1. Horn switch 2. Horn relay (Built - in Metal Core Block PCB) 3. Horn (Low pitch) | 4. Horn (High pitch) 5. Clock spring |
Removal 1. Remove the front bumper cover. (Refer to Body - "Front Bumper Cover") 2. After loosening each mounting bolt of the low-pitch horn (A) and high-pitch horn (B), detach the connector (C) and remove the horn.
