Hyundai Genesis (DH): ESC(Electronic Stability Control) System / Components and Components Location

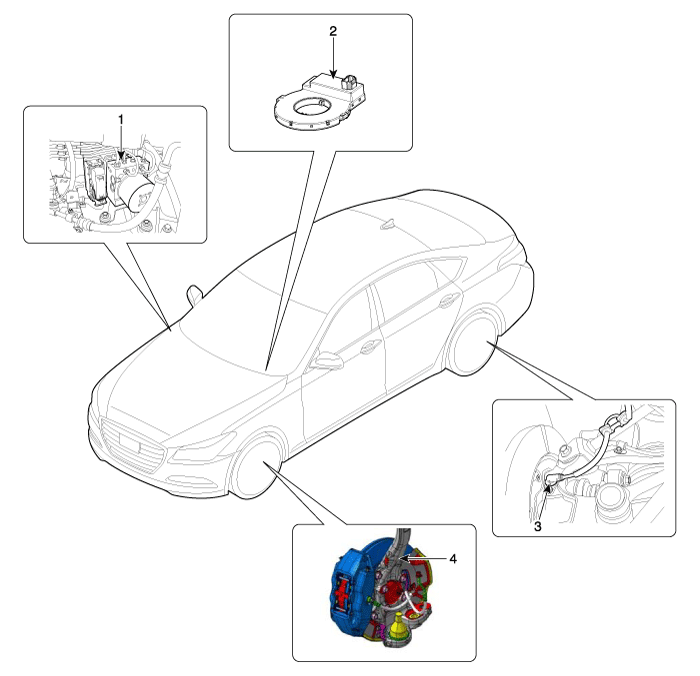

| Components |
| 1. HECU module 2. Steering angle sensor (SAS) | 3. Rear wheel speed sensor 4. Front wheel speed sensor |
Description of ESC ESC recognizes critical driving conditions, such as panic reactions in dangerous situations, and stabilizes the vehicle by braking by wheel and engine control intervention.
