Hyundai Genesis (DH): Front Suspension System / Components and Components Location
| Components Location |

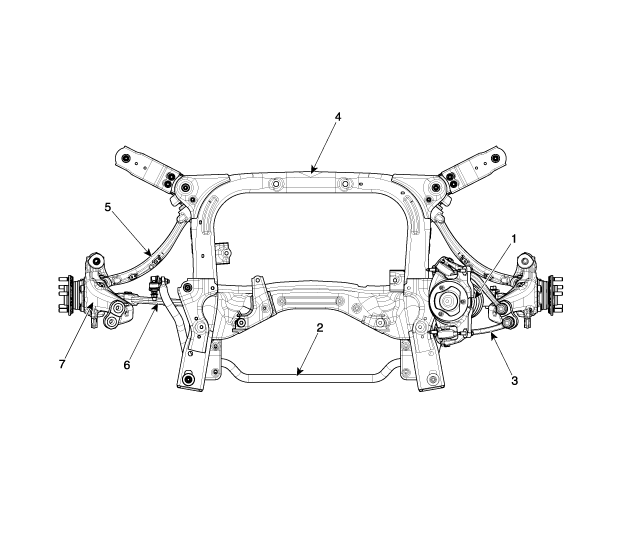

| [2WD] |
| 1. Front shock absorber assembly 2. Front stabilizer bar 3. Front upper arm 4. Front sub frame | 5. Tension arm 6. Lateral arm 7. Front knuckle assembly |

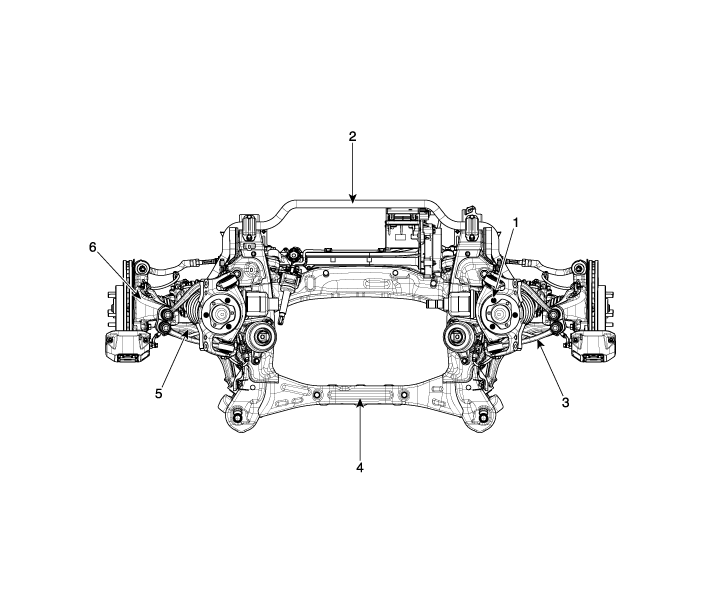

| [4WD] |
| 1. Front shock absorber assembly 2. Front stabilizer bar 3. Front upper arm | 4. Front sub frame 5. Compression arm 6. Front knuckle assembly |
Components [2WD] 1. Insulator cap2. Insulator assembly3. Spring upper pad4. Dust cover 5. Bump stopper6. Coil spring7. Spring lower pad8. Shock absorber [4WD] 1.
