Components

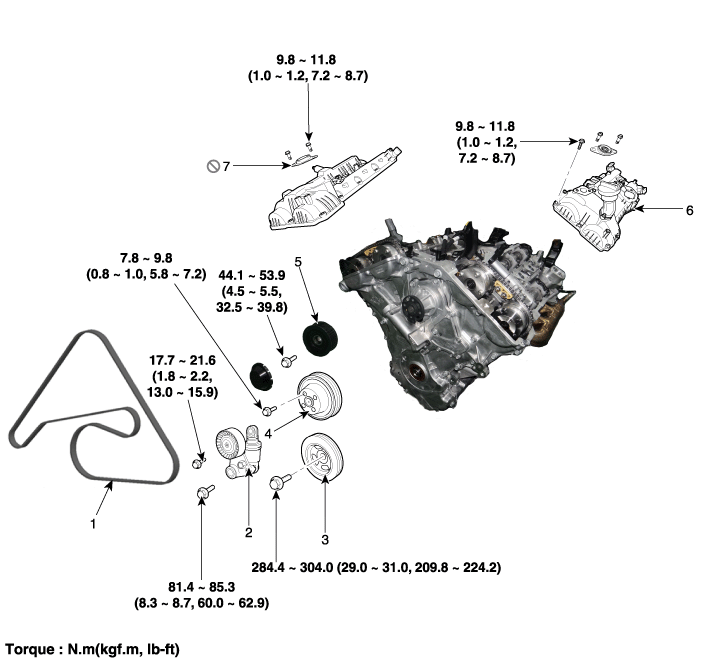

1. Drive belt
2. Drive belt tensioner
3. Crankshaft pulley
4. Water pump pulley
5. Idler
6. Cylinder head cover
7. Exhaust camshaft OCV cap

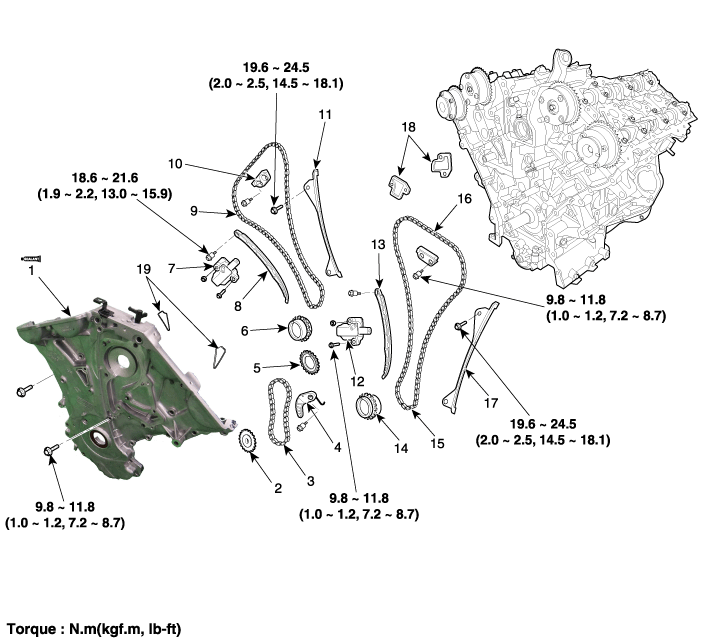

1. Timing chain cover
2. Oil pump sprocket
3. Oil pump chain
4. Oil pump tensioner assembly
5. Crankshaft oil pump sprocket
6. Crankshaft RH chain sprocket
7. RH Timing chain auto tensioner
8. RH Timing chain tensioner arm
9. RH Timing chain
10. RH cam to cam guide
11. RH Timing chain guide
12. LH Timing chain auto tensioner
13. LH Timing chain tensioner arm
14. Crankshaft LH chain sprocket
15. LH Timing chain
16. LH cam to cam guide
17. LH Timing chain guide
18. Tensioner adapter
19. Gasket

    Removal and Installation 1. Disconnect the battery "-" terminal from the trunk room. 2. Remove the engine cover. (Refer to Engine And Transaxle Assembly - "Engine Cover") 3.
