Hyundai Genesis: Engine Control System / Components and Components Location

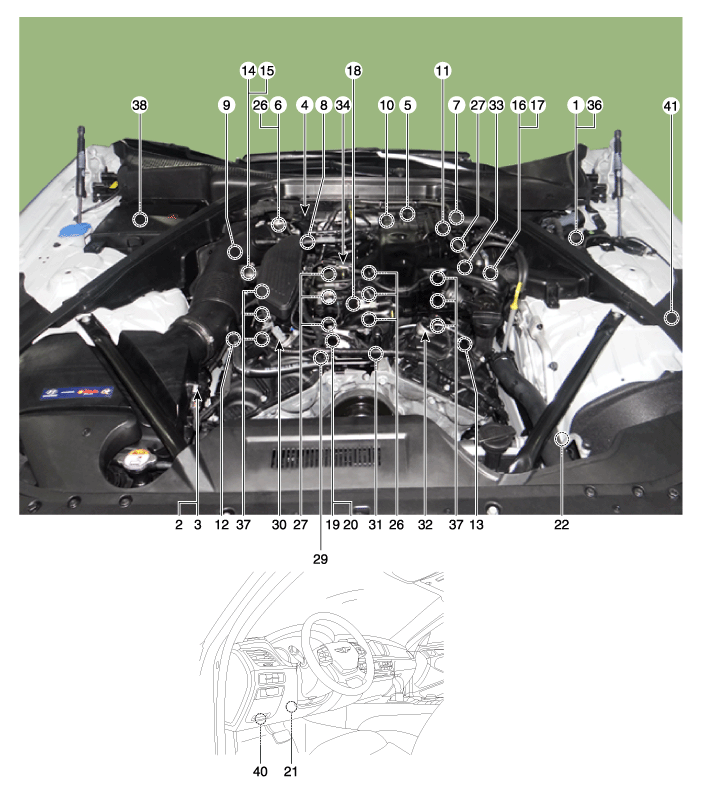

Components Location

1. ECM (Engine Control Module)
2. Barometric Pressure Sensor (BPS)
3. Intake Air Temperature Sensor (IATS)
4. Manifold Absolute Pressure Sensor (MAPS)
5. Engine Coolant Temperature Sensor (ECTS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
10. Camshaft Position Sensor (CMPS) [Bank 2 / Intake]
11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]
12. Knock Sensor (KS) [Bank 1]
13. Knock Sensor (KS) [Bank 2]
14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]
16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]
18. Rail Pressure Sensor (RPS)
19. CVVT Oil Temperature Sensor (OTS)
20. CVVT Oil Pressure Sensor (OPS)
21. Accelerator Position Sensor (APS)
22. A/C Pressure Transducer (APT)

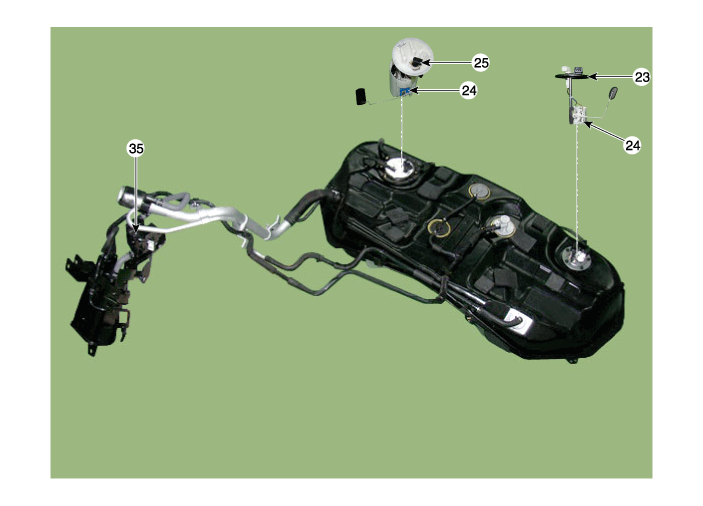

23. Fuel Tank Pressure Sensor (FTPS)
24. Fuel Level Sensor (FLS)
25. Fuel Pressure Sensor (FPS)
26. ETC Motor (integrated info ETC module]
27. Injector
28. Purge control solenoid valve (PCSV)
29. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
30. CVVT Oil Control Valve (OCV) [Bank 1 / Exhaust]
31. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]
32. CVVT Oil Control Valve (OCV) [Bank 2 / Exhaust]
33. Fuel Pressure Control Valve (FPCV)
34. Variable Intake Solenoid (VIS) valve
35. Canister Close Valve (CCV)
36. Injector Drive Box (IDB)
37. Ignition Coil
38. Main Relay
39. Fuel Pump Relay
40. Data Link Connector (DLC) [16 pin]
41. Multi-Purpose Check Connector [20 pin]

1. ECM (Engine Control Module)
36. Injector Drive Box (IDB)
2. Barometric Pressure Sensor (BPS)
3. Intake Air temperature Sensor (IATS)

4. Manifold Absolute Pressure Sensor (MAPS)
6. Throttle Position Sensor (TPS) [integrated into ETC Module]
26. ETC Motor [integrated into ETC Module]
5. Engine Coolant Temperature Sensor (ECTS)

7. Crankshaft Position Sensor (CKPS)
8. Camshaft Position Sensor (CMPS) [Bank 1 / Intake]
10. Camshaft Position Sensor (CMPS) [Bank 2 /Intake]

9. Camshaft Position Sensor (CMPS) [Bank 1 / Exhaust]
11. Camshaft Position Sensor (CMPS) [Bank 2 / Exhaust]

12. Knock Sensor (KS) [Bank 1]
13. Knock Sensor (KS) [Bank 2]

14. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 1]
15. Heated Oxygen Sensor (HO2S) [Bank 1 / Sensor 2]

16. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 1]
17. Heated Oxygen Sensor (HO2S) [Bank 2 / Sensor 2]

18. Rail Pressure Sensor (RPS)
21. Accelerator Position Sensor (APS)

22. A/C Pressure Transducer (APT)
23. Fuel Tank Pressure Sensor (FTPS)

24. Fuel Level Sensor (FLS)
25. Fuel Pressure Sensor (FPS)
27. Injector

28. Purge Control Solenoid Valve (PCSV)
29. CVVT Oil Control Valve (OCV) [Bank 1 / Intake]
31. CVVT Oil Control Valve (OCV) [Bank 2 / Intake]

30. CVVT Oil Control valve (OCV) [Bank 1/ Exhaust]
34. Variable Intake Solenoid (VIS) valve
32. CVVT Oil Control valve (OCV) [Bank 2/ Exhaust]

33. Fuel Pressure Control Valve (FPCV)

35. Canister Close Valve (CCV)

37. Ignition Coil
38. Main Relay

39. Fuel Pump Relay
41. Multi - Purpose Check Connector [20Pin]
