Hyundai Genesis (DH): Blind Spot Detection system / Components and Components Location

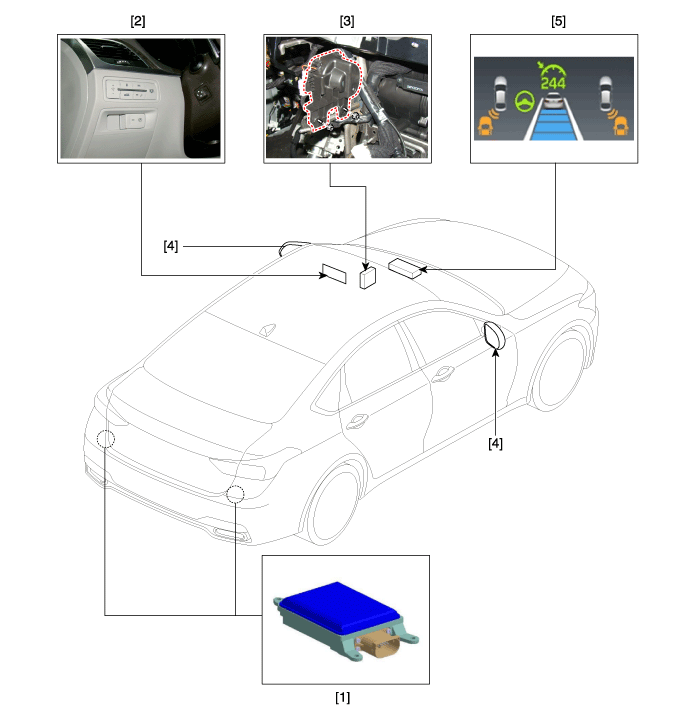

| Components |
| 1. Blind Spot Detection (BSD) Unit 2. BSD switch | 3. Speaker 4. BSD warning lamp 5. Head up display (HUD) |
Specifications ItemsSpecificationRated voltageDC 12VOperating voltage9V ~ 16VOperating speed15?/h ~ 250?/hSensible distance70m (Sedan)Curvature radiusStart : More than 100mStop : Less than 70mFrequency24 GHzNumbers2EA (Master 1EA, Slave 1EA)
Description BSD is a system that measures the speed of and distance from the following vehicles by using two magnetic wave radar sensors attached to the rear bumper, and detects any vehicle within the blind spot zone and gives off alarm (visual and auditory).
