Hyundai Genesis (DH): Auto Lighting Control System / Components and Components Location
Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Auto Lighting Control System / Components and Components Location

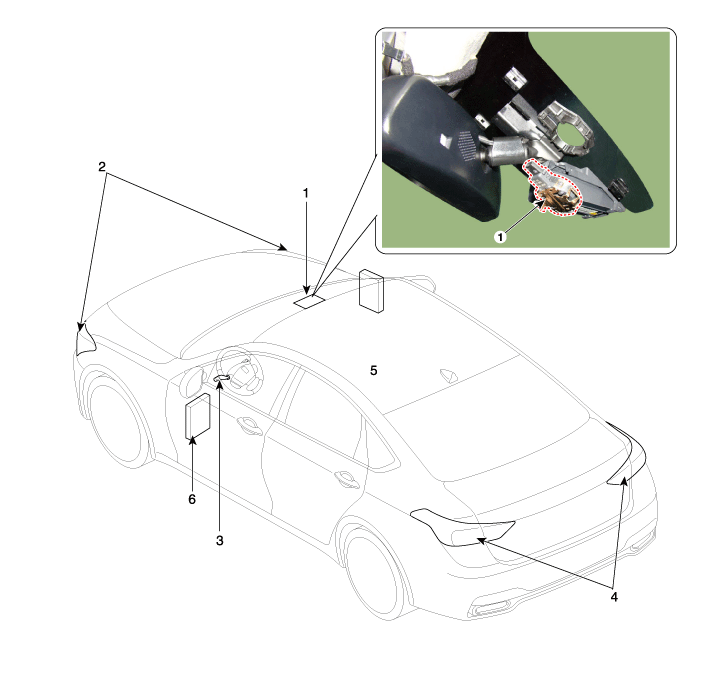

| Component Location |
| 1. Rain sensor (Built - in Auto light sensor) 2. Head lamps 3. Lighting switch (Auto) | 4. Tail lamps 5. BCM (Body Control Module) 6. SJB (Smart Junction Block) |
Specifications ItemsSpecificationsRated voltage5VLoadMax. 1mA (Relay load)Detection illuminationsTail lampON : 74
Circuit Diagram
