Hyundai Genesis (DH): Panorama Sunroof / Components and Components Location

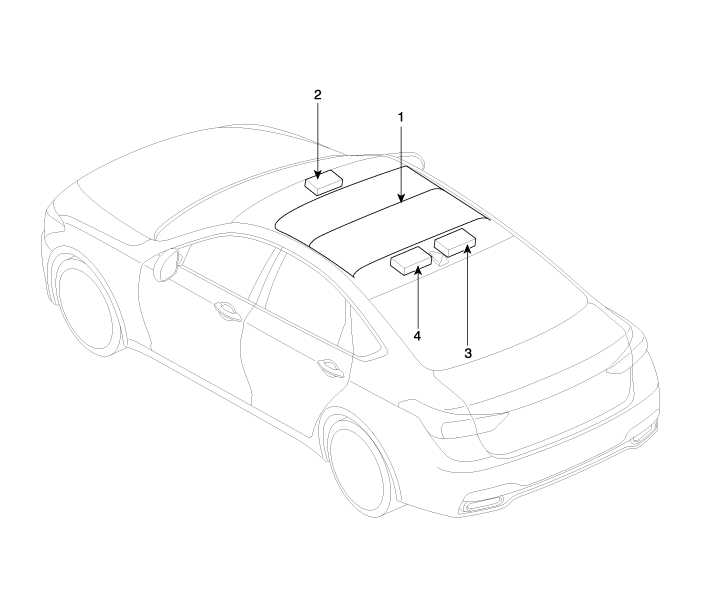

| Component Location |
| 1. Panorama sunroof 2. Panorama sunroof switch | 3. Panorama sunroof motor & controller 4. Roller blind motor & slave controller |
Circuit Diagram NO.Overhead console connector (10pin)Panorama sunroof motor (12pin)Roller blind motor (12pin)1GroundGround 1Battery (+)2-Glass status signal/ Parameter tool-3IGNGNDGround4Signal C switchLIN 1LIN 15Signal A switchLIN2LIN 26Battery (+)Signal B switch-7Glass status signal/ Parameter toolSignal C switch-8Vehicle speed signalSignal A switch-9---10Signal B switch--11?Vehicle speed signal-12IGNIGN
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Condenser Repair procedures
Inspection 1. Check the condenser fins for clogging and damage. If they are clogged, clean them with water, and blow them with compressed air. If they are bent, gently bend them using a screwdriver or pliers. 2. Check the condenser connections for leakage, and repair or replace it, if required.
Hyundai Genesis (DH) 2013-2016 Service Manual: Intake Actuator Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the intake actuator connector. 3. Verify that the intake actuator operates to the fresh position when connecting 12V to terminal 3 and grounding terminal 4. Verify that the intake actuator operates to the recirculation position when connected in reverse.
