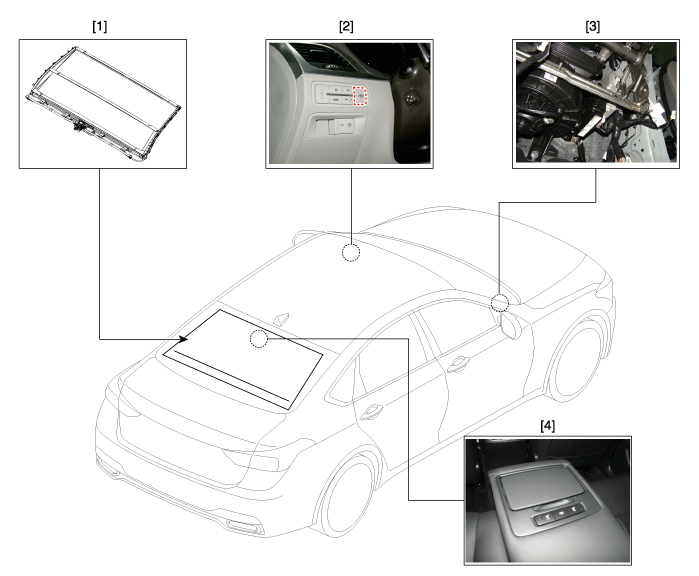

Component Location

1. Rear curtain
2. Rear curtain switch (Floor console upper cover)
3. Body Control Module (BCM)
4. Rear seat curtain switch

    Description The rear curtain is AUTO UP/AUTO DOWN by one-touch operation of the switch. The curtain covers the inner side of the rear glass to keep passengers out of direct sunlight.

    Other information:

    Hyundai Genesis (DH) 2013-2016 Service Manual: Rear Combination Lamp Repair procedures

    Removal 1. Disconnect the negative (-) battery terminal. 2. After loosening the nuts (4EA) holding the rear combination lamp and disconnecting the connector (A), remove the outside rear combination lamp assembly. 3. Remove the bulb (A) after turning it in the counter clock-wise direction.

    Hyundai Genesis (DH) 2013-2016 Service Manual: Photo Sensor Repair procedures

    Inspection 1. Turn the ignition switch ON. 2. Connect the GDS. 3. Emit intensive light toward the photo sensor using a lamp, and check the output voltage change. 4. The voltage will rise with higher intensive light and fall with lower intensive light.
