Hyundai Genesis: Maintenance / Climate control air filter

Filter inspection

The climate control air filter should be replaced according to the Maintenance Schedule. If the vehicle is operated in severely air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier. When you replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging other components.

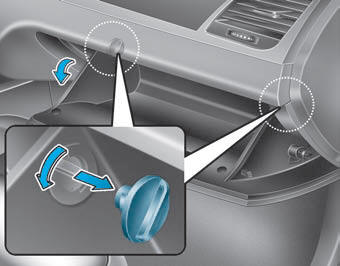

1. With the glove box open, remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

2. Remove the support rod (1).

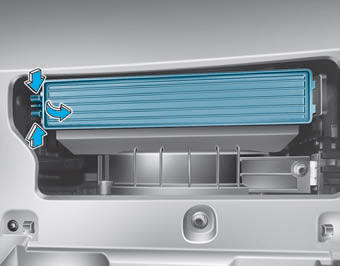

3. Remove the climate control air filter case by pulling out left sides of the cover.

4. Replace the climate control air filter.

5. Reassemble in the reverse order of disassembly.

✽ NOTICE

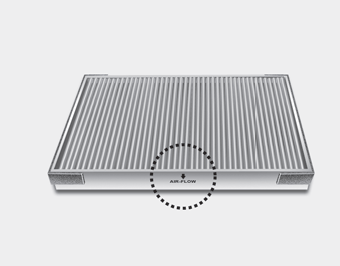

Install a new climate control air filter in the correct direction with the arrow symbol (↓) facing downwards. Otherwise, the climate control effects may decrease, possibly with a noise.
