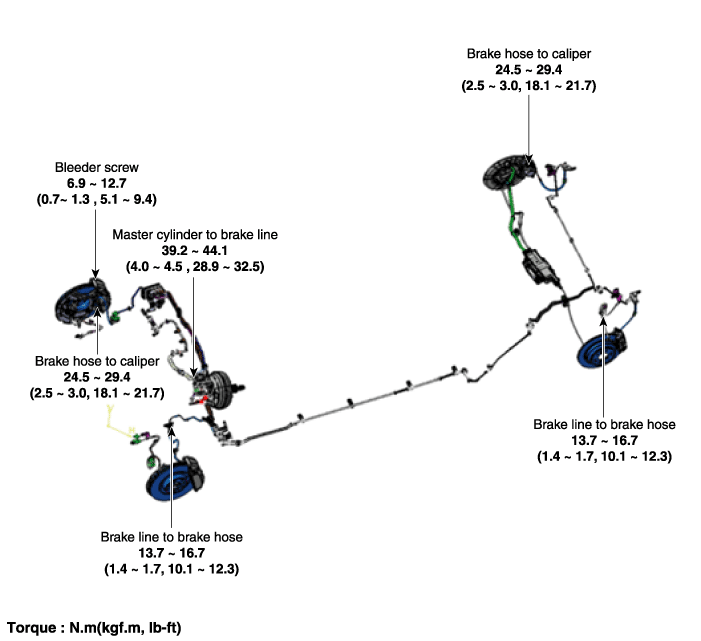

Components

Master Cylinder Repair procedures
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Disconnect the ECM connector (A) and TCM connector (B). IDB (C) and then remove the noise barrier (D). ...

Brake Line Repair procedures
Removal 1. Disconnect the brake fluid level switch connector, and remove the reservoir cap. 2. Remove the brake fluid from the master cylinder reservoir with a syringe. 3. Remove the wheel ...
