Hyundai Genesis (DH): Automatic Transmission System / Automatic Transmission Components and Components Location
| Components Location |

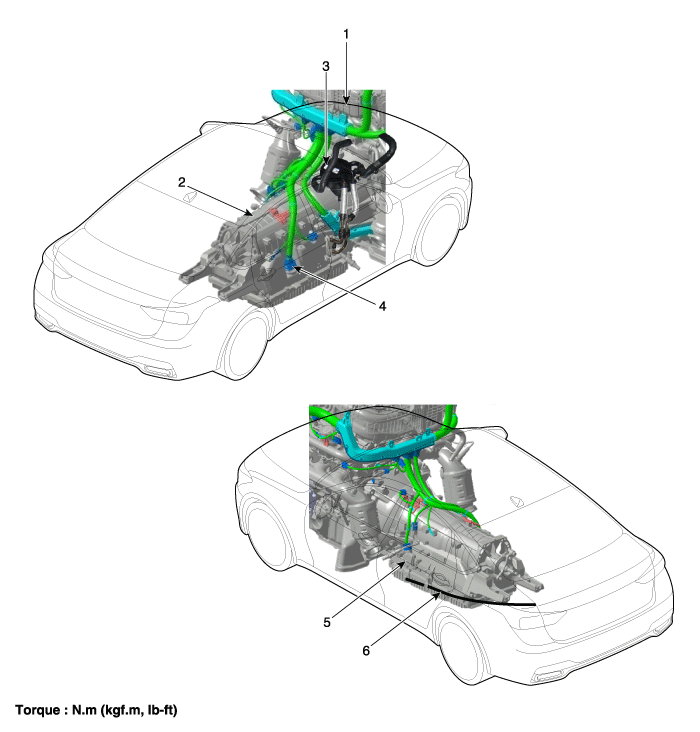

| 1. Engine 2. Transmission 3. ATF warmer | 4. Transmission connector(E-Module connector) 5. Inhibitor switch 6. Shift cable |

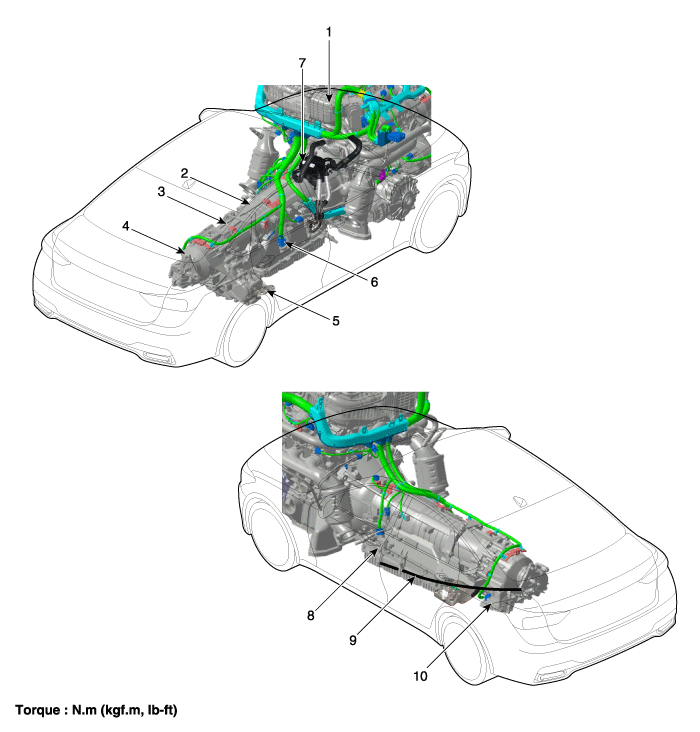

| 1. Engine 2. Transmission 3. Transfer case adapter 4. Transfer case 5. Transmission cross member | 6. Transmission connector 7. ATF warmer 8. Inhibitor switch 9. Shift cable 10. Transfer case ECU |
End Of Line(EOL) Input When shift shock occurs or transmission-related parts are replaced, End Of Line(EOL) should be performed.
Removal 1. Turn ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the under cover. (Refer to Engine Mechanical System - "Engine room under cover") 3.
