Hyundai Genesis: Automatic Transmission System / Repair procedures

End Of Line(EOL) Input

When shift shock occurs or transmission-related parts are replaced, End Of Line(EOL) should be performed.
In the following case, EOL is required.
Transmission assembly replacement
TCM replacement
EOL(Oil-pressure characteristics) Input procedure

In case of changing the transmission assembly and TCM, perform "Oil-pressure characteristics input" procedure with GDS.
Oil-pressure characteristics(Bar code) location

1.
In case of changing the transmission assembly.
A.

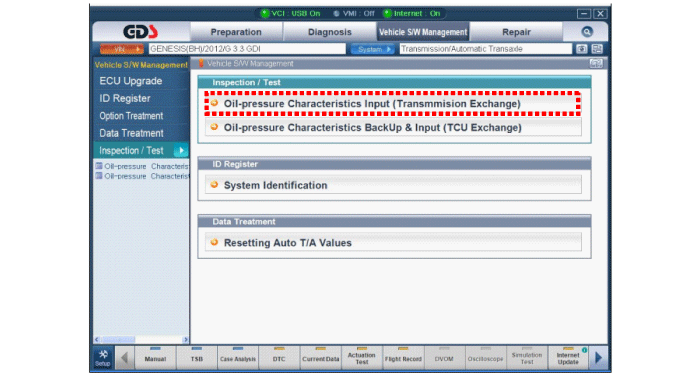

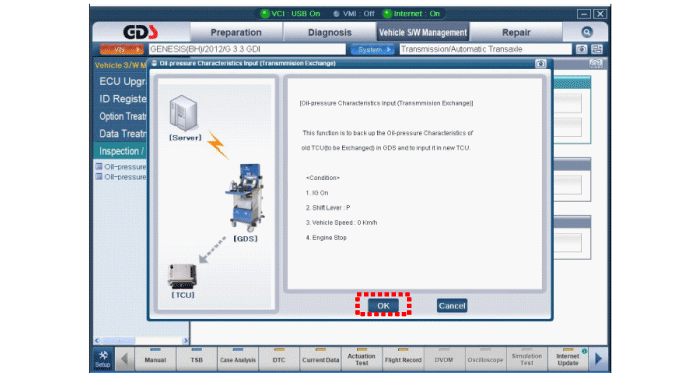

Perform "Oil-pressure characteristics input" procedure.
B.

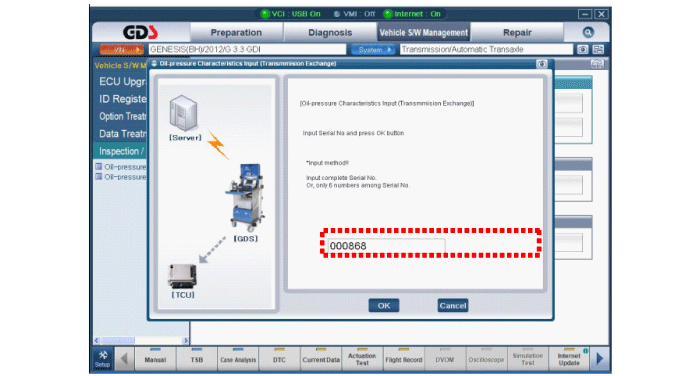

With the internet access (automatic mode): Input serial number of the transmission.
C.

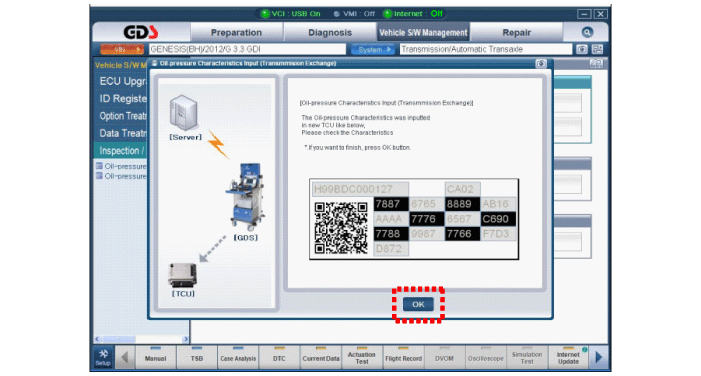

Without the internet access (manual mode): Input the oil-pressure characteristics in the bar code.

D.

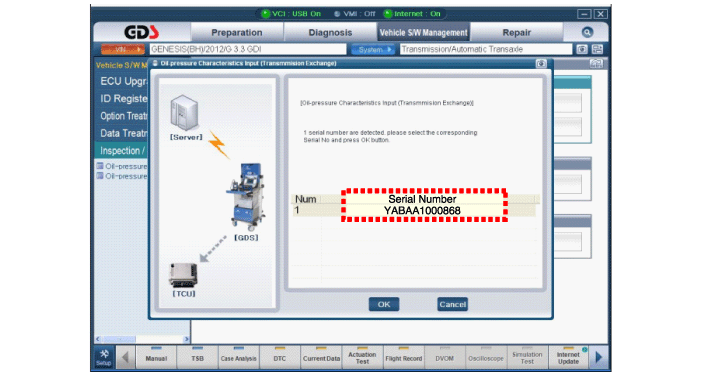

With the internet access (automatic mode)

E.

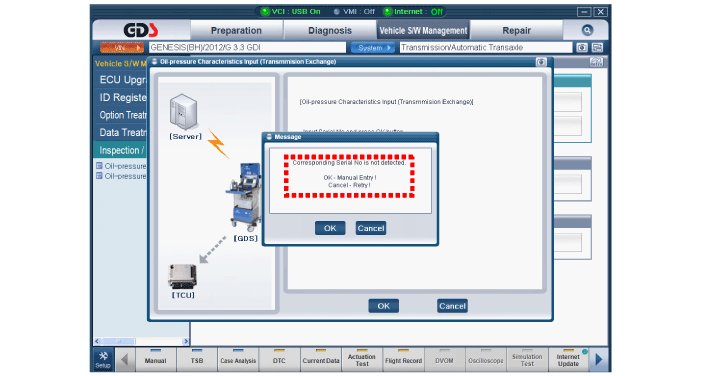

Without the internet access (manual mode)

2.
In case of changing the TCM.
A.

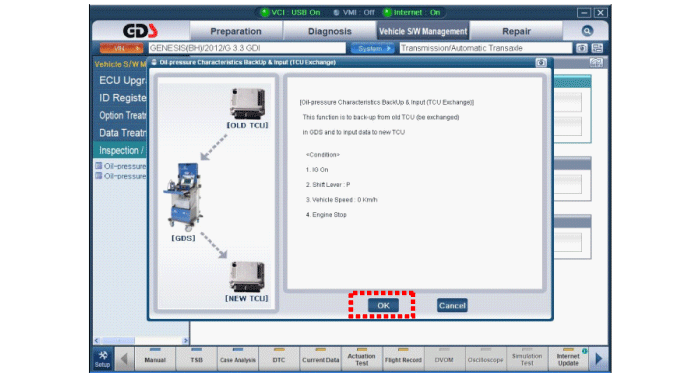

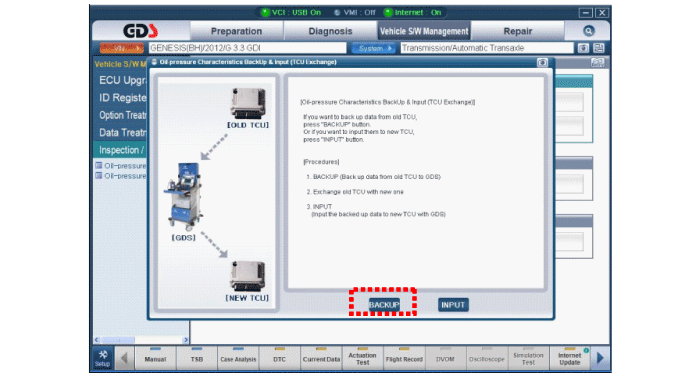

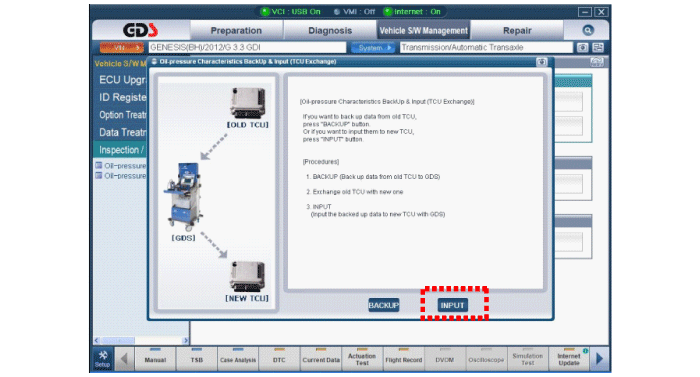

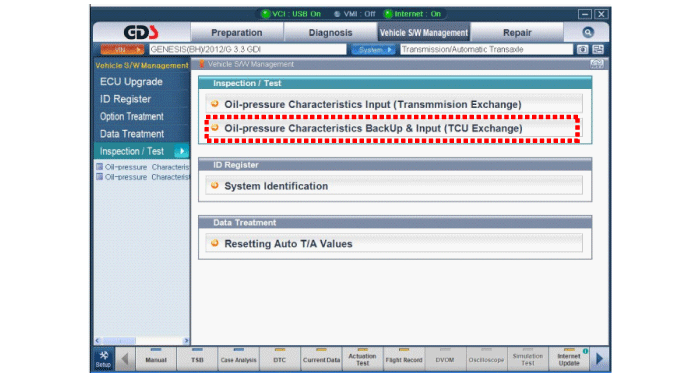

Perform "Oil-pressure characteristics backup & input" procedure.

B.

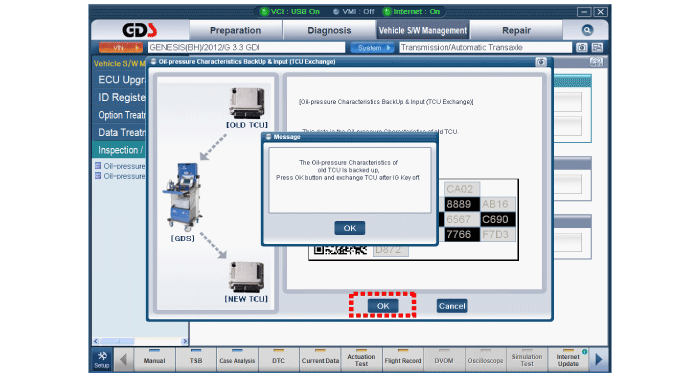

Perform "Oil-pressure characteristics backup " procedure.

C.

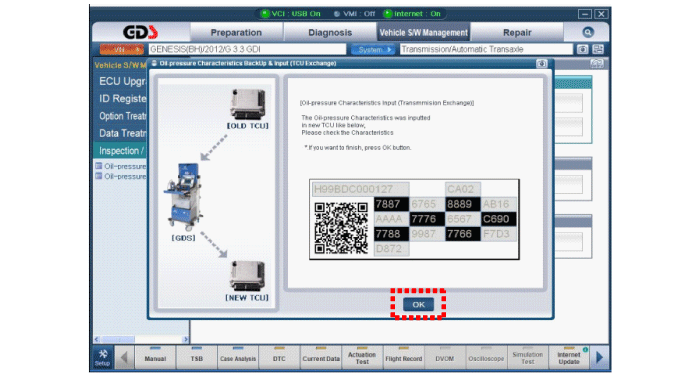

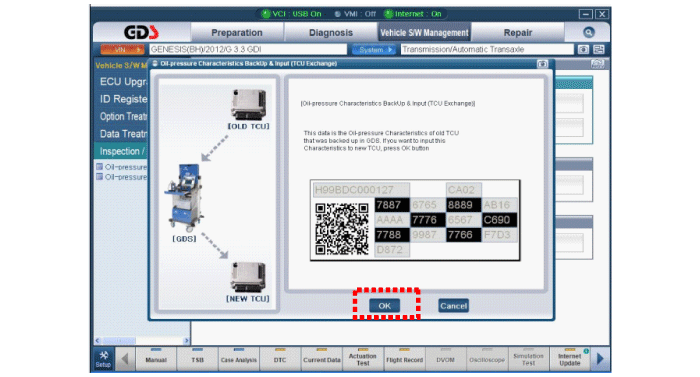

Perform "Oil-pressure characteristics input" procedure.
