Hyundai Genesis (DH): Auto Lighting Control System / Auto Light Sensor Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Auto Lighting Control System / Auto Light Sensor Components and Components Location

Components and Components Location

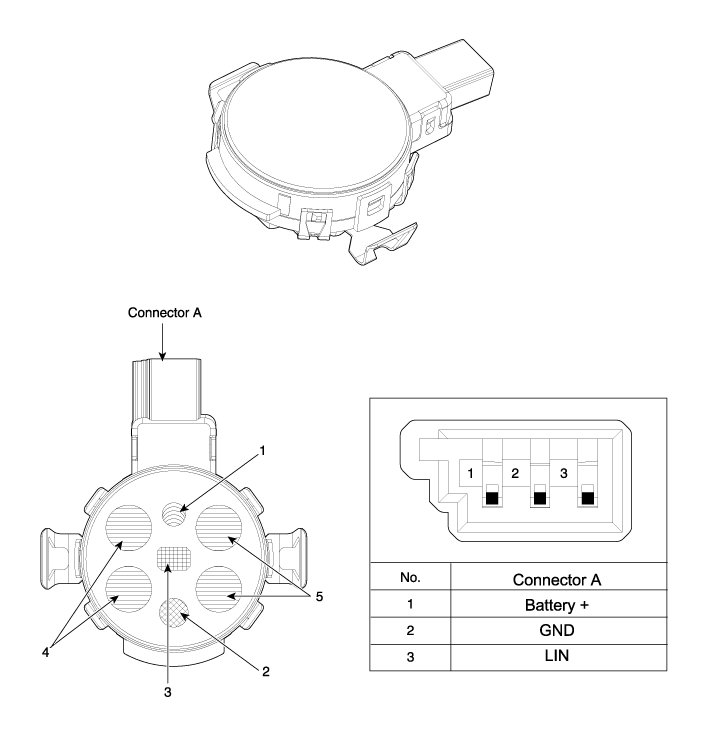

1. Horizontal light sensor
2. Vertical light sensor
3. Solar load sensor
4. Rain sensor - left
5. Rain sensor - right

    Description Integrated Rain Sensor Integrated rain sensor (A) controls three systems: front wiper, auto-light, and central air conditioner. 1. Wiper Control System When "AUTO" switch signal is received from the multi-function switch on the right, the integrated rain sensor detects the amount of rainfall.

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the photo & auto light sensor. (Refer to Windshield Wiper/Washer - "Rain Sensor") Installation 1.
