Hyundai Genesis: Manual heating and air conditioning / Air conditioning

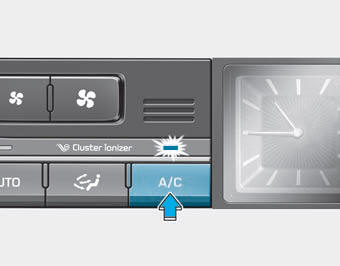

Push the A/C button to turn the air conditioning system on (indicator light will illuminate).

Push the button again to turn the air conditioning system off.
