Hyundai Genesis: Interior lights / Vanity mirror lamp

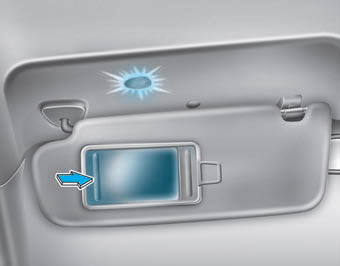

Opening the lid of the vanity mirror will automatically turn on the mirror light.

CAUTION

To prevent unnecessary charging system drain, close the vanity mirror cover after using the mirror.
