Hyundai Genesis: Roof Trim / Sunvisor Components and Components Location

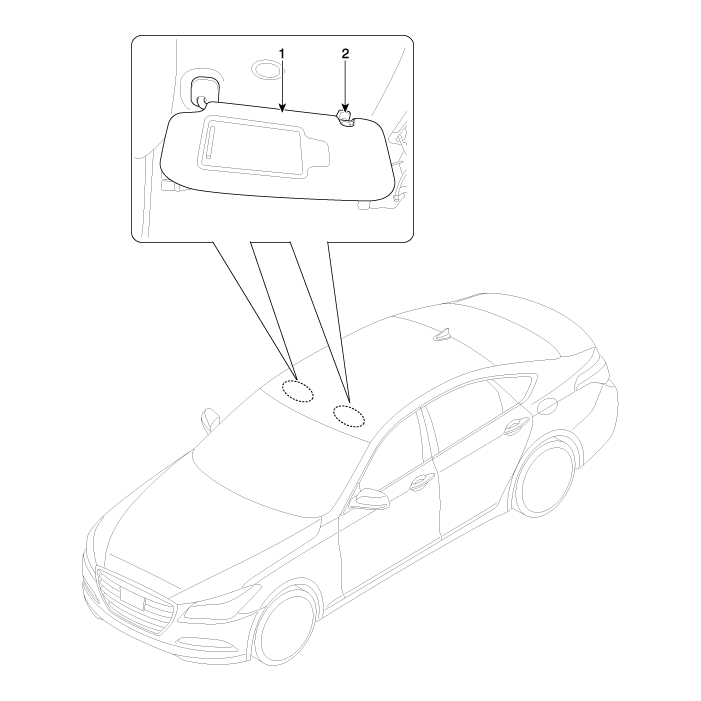

Component Location

1. Sunvisor
2. Retainer

Components and Components Location
Components [General Type] 1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle bracket [Panorama Sunroof Type] 1. Roof trim2. Sunvisor [LH]3. Sunvisor [RH]4. Assist handle brac ...

Sunvisor Repair procedures
Replacement     • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the int ...
