To fasten your seat belt:

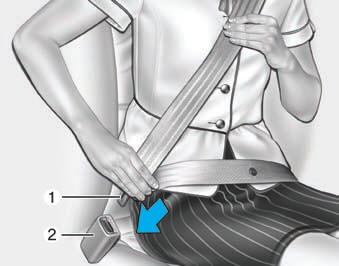

Pull the seat belt out of the retractor and insert the metal tab (1) into the buckle (2). There will be an audible "click" when the tab locks into the buckle.

The seat belt automatically adjusts to the proper length after the lap belt portion is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and move with you. If there is a sudden stop or impact, the belt will lock into position. It will also lock if you try to lean forward too quickly.

✽ NOTICE

If you are not able to smoothly pull enough of the seat belt out from the retractor, firmly pull the seat belt out and release it. After release, you will be able to pull the belt out smoothly.

Height adjustment

You can adjust the height of the shoulder belt anchor to one of the four different positions for maximum comfort and safety.

The shoulder portion should be adjusted so it lies across your chest and midway over your shoulder nearest the door, not over your neck.

To adjust the height of the seat belt anchor, lower or raise the height adjuster into an appropriate position.

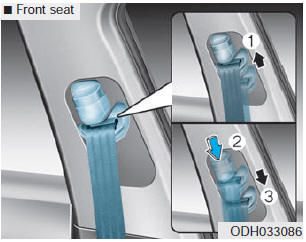

To raise the height adjuster, pull it up (1). To lower it, push it down (3) while pressing the height adjuster button (2).

Release the button to lock the anchor into position. Try sliding the height adjuster to make sure that it has locked into position.

WARNING

Improperly positioned seat belts may increase the risk of serious injury in an accident.Take the following precautions when adjusting the seat belt:

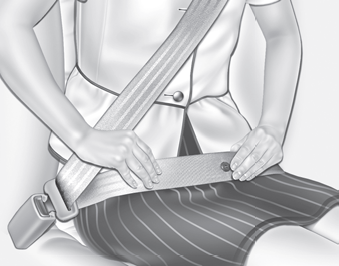

  • Position the lap portion of the seat belt as low as possible across your hips, not on your waist, so that it fits snugly.
  • Position one arm under the shoulder belt and the other over the belt, as shown in the illustration.
  • Always position the shoulder belt anchor into the locked position at the appropriate height.
  • Never position the shoulder OLMB033025 belt across your neck or face.

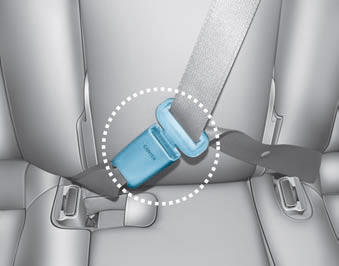

When using the rear center seat belt, the buckle with the “CENTER” mark must be used.
