Hyundai Genesis: Trunk Trim / Repair procedures

Replacement

• Put on gloves to prevent hand injuries.

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components. • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface. • Take care not to bend or scratch the trim and panels.

1.	Remove the rear seat cushion assembly. (Refer to Rear Seat - "Rear Seat Assembly")

2.	Remove the rear seat back assembly. (Refer to Rear Seat - "Rear Seat Assembly")

3.	After loosening the mounting bolts, remove the panel & trim partition assembly (A).

4.	Remove the luggage cover board (B).

5.	Remove rear transverse trim (C).

6.	Remove rear partition upper trim (D).

7.	After loosening the mounting screws, remove the luggage side trim (E).

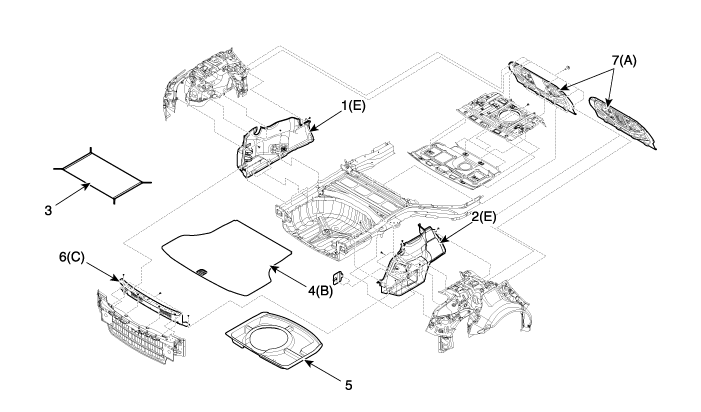

8.	Install in the reverse order of removal. • Replace any damage clips. 1. Luggage side trim [LH] 2. Luggage side trim [RH] 3. Luggage net 4. Luggage cover board 5. Luggage under cover 6. Rear transverse trim 7. Panel & trim partition 8. Partition upper trim
