Hyundai Genesis: Towing / Removable towing hook

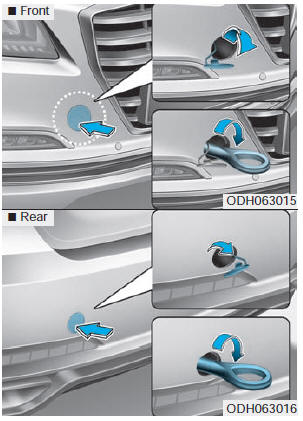

1.Open the trunk, and remove the towing hook from the tool case.

2.Remove the hole cover pressing the lower part of the cover on the bumper.

3.Install the towing hook by turning it clockwise into the hole until it is fully secured.

4.Remove the towing hook and install the cover after use.

Towing
Towing service If emergency towing is necessary, we recommend having it done by an authorized HYUNDAI dealer or a commercial tow-truck service. Proper lifting and towing procedures are ne ...

Emergency towing
If towing is necessary, we recommend you to have it done by an authorized HYUNDAI dealer or a commercial tow truck service. If towing service is not available in an emergency, your vehicle ...
