Hyundai Genesis: Rear Door / Rear Door Trim Repair procedures

Replacement

Put on gloves to prevent hand injuries.

Be careful not to scratch or dent the crash pad garnish and door trim upper garnish because these parts are made of weak material (real wood).
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.
1.
Using a screwdriver or remover, remove the frame inner cover (A).

2.
Using a flat-tip or remover, remove the rear door pull cap (A).

3.
After pulling the rear side door handle, remove the cap (A) from the inside using a flat head screwdriver.

4.

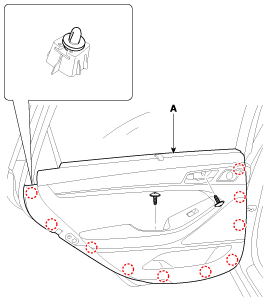

After loosening the mounting screws, remove the rear door trim (A) by using a flat-tip screwdriver.

5.
Remove the rear door inside handle cage (A).
6.
Disconnect the power window switch connector (B).

7.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly. Make sure the glass moves properly.
Replace any damaged clips.
