Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Components and Components Location

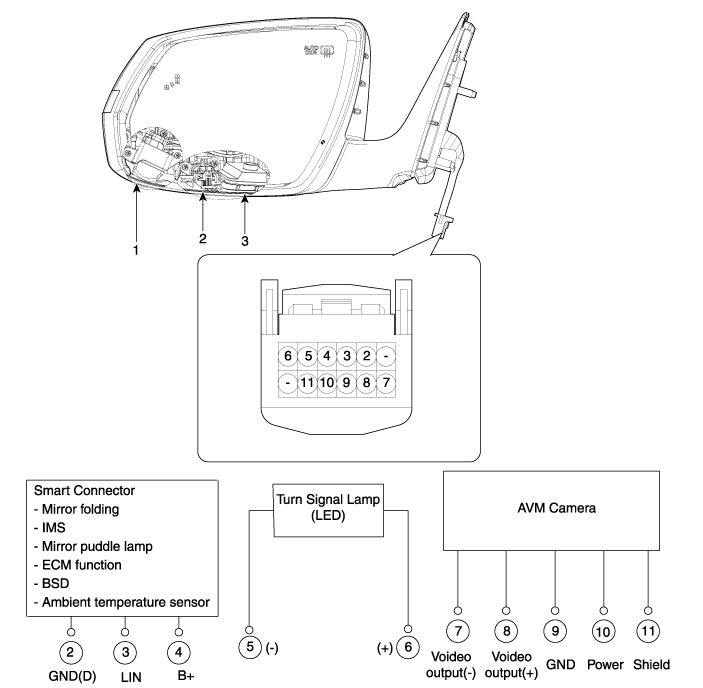

Components

1. AVM Camera
2. Ambient temperature sensor
3. Puddle lamp

Power Door Mirror Switch Repair procedures
Inspection Diagnosis With GDS 1. In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS). (1) Checking failure and code number (DCT) (2) ...

Power Door Mirror Actuator Repair procedures
Inspection 1. Disconnect the negative (-) battery terminal. 2. Disconnect the connector (B) after removing the front door frame inner cover (A). 3. Disconnect the power door mirror connect ...
