Hyundai Genesis (DH): IMS(Integrated Memory System) / Memory power seat unit Components and Components Location

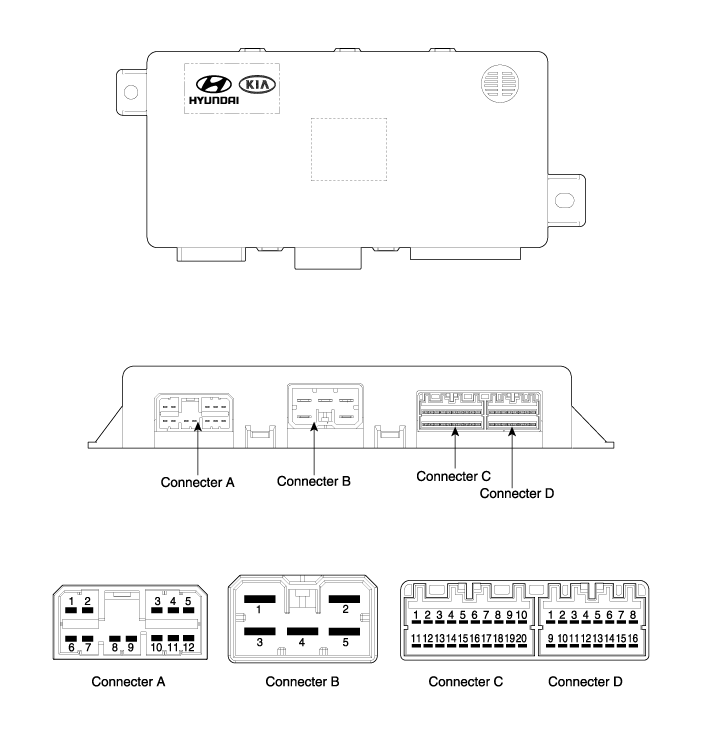

| Components |
| NO | Connecter A | Connecter B | Connecter C | Connecter D |
| 1 | - | B+ (Power) | - | - |
| 2 | Cushion extension moter(Front) | GND (Power) | B CAN High | - |
| 3 | Front tilt motor(UP) | B+ (Power) | B CAN Low | Slide hall sensor |
| 4 | Back motor(Front) | - | - | Tilt hall sensor |
| 5 | Slide motor(Front) | GND (Power) | - | Cushion ext hall sensor |
| 6 | - | ? | - | Sensor VCC |
| 7 | Cushion extends motor(Rear) | - | IGN1 | |
| 8 | Rear height sensor(UP) | - | B+ (ECU) | |
| 9 | Rear height sensor(Down) | - | GND (ECU) | |
| 10 | Front tilt motor(Down) | - | - | |
| 11 | Back motor(Rear) | - | Recline hall sensor | |
| 12 | Slide Moter(Rear) | - | Height hall sensor | |
| 13 | ? | - | - | |
| 14 | - | - | ||
| 15 | - | - | ||
| 16 | - | - | ||
| 17 | - | ? | ||
| 18 | - | |||
| 19 | - | |||
| 20 | - |
Description The optimal seat position set by the driver is memorized into the power seat unit by using IMS switch. In case of the position change, the seat can restore its preset position by IMS switch.
Circuit Diagram
