Hyundai Genesis: Warning Messages / Key not in vehicle. Align steering wheel

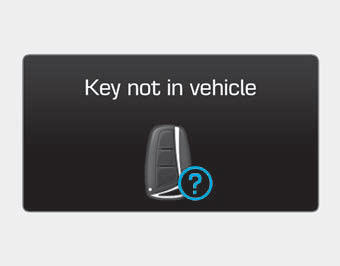

Key not in vehicle

  • This warning message illuminates if the smart key is not in the vehicle when you press the Engine Start/Stop button.
  • It means that you should always have the smart key with you.

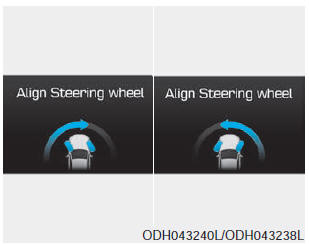

Align steering wheel

  • This warning message illuminates if you start the engine when the steering wheel is turned to more than 90 degrees to the left or right.
  • It means that you should turn the steering wheel and make the angle of the steering wheel be less than 30 degrees.
Low Key Battery. Key not detected
Low Key Battery • This warning message illuminates if the battery of the smart key is discharged when the Engine Start/Stop button changes to the OFF position. Key not detected • Th ...

Steering wheel aligning is completed
• If the steering wheel aligning is completed after “Align steering wheel” warning message is displayed, this message is displayed for 2 seconds. ...

Other information:

Hyundai Genesis (DH) 2013-2016 Service Manual: Instrument Cluster Components and Components Location


Components Connector Pin Information No.DescriptionNo.Description1-21-2Illumination output22-3Rheostat down switch234P output4Rheostat up switch24Immobilizer5AT N output25AT S output6Oil pressure26AT R output7Low washer27AT P output8Charge28-9AT D output29-10Illumination +30MM_CAN High11-31MM_CA ...

Hyundai Genesis (DH) 2013-2016 Service Manual: Schematic Diagrams


System Block Diagram Component Parts And Function Outline Component partFunctionVehicle-speed sensor, ESP/ABS Control ModuleConverts vehicle speed to pulse.ECMReceives signals from sensor and control switches.Cruise control indicatorIlluminates when CRUISE main switch is ON (Built into cluster)C ...
