Hyundai Genesis (DH): Front Seat Belt / Height Adjust Components and Components Location

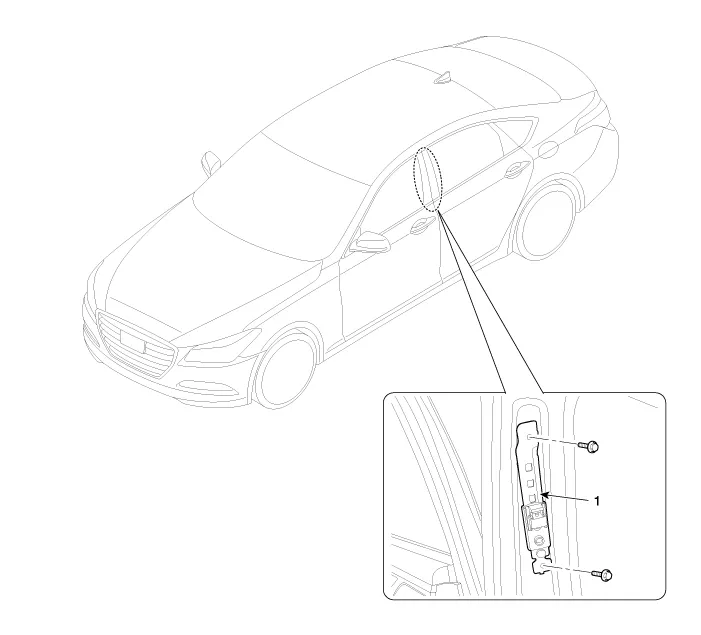

| Component Location |
| 1. Height adjust |
Replacement
Replacement 1. Remove the front seat belt upper anchor. (Refer to Front Seat Belt - "Front Seat Belt Retractor") 2. After loosening the mounting bolts, remove the height adjustor (A).
Other information:
Hyundai Genesis (DH) 2013-2016 Service Manual: Front Fog Lamps Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the front bumper. (Refer to Body - "Front Bumper Cover") 3. Disconnect the front fog lamp connector (A). 4. Remove the front fog lamp assembly (A) after loosening the mounting nut.
Hyundai Genesis (DH) 2013-2016 Service Manual: License Lamps Repair procedures
Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the trunk lid panel. (Refer to Body - "Trunk Lid Back Panel") 3. Remove the license lamp after disengaging the license lamp mounting clip (A) 4. Remove the license lamp assembly after disconnecting the license connector (A).
