Hyundai Genesis (DH): Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

Hyundai Genesis (DH) 2013-2016 Service Manual / Engine Control / Fuel System / Engine Control System / CVVT Oil Control Valve (OCV) Schematic Diagrams

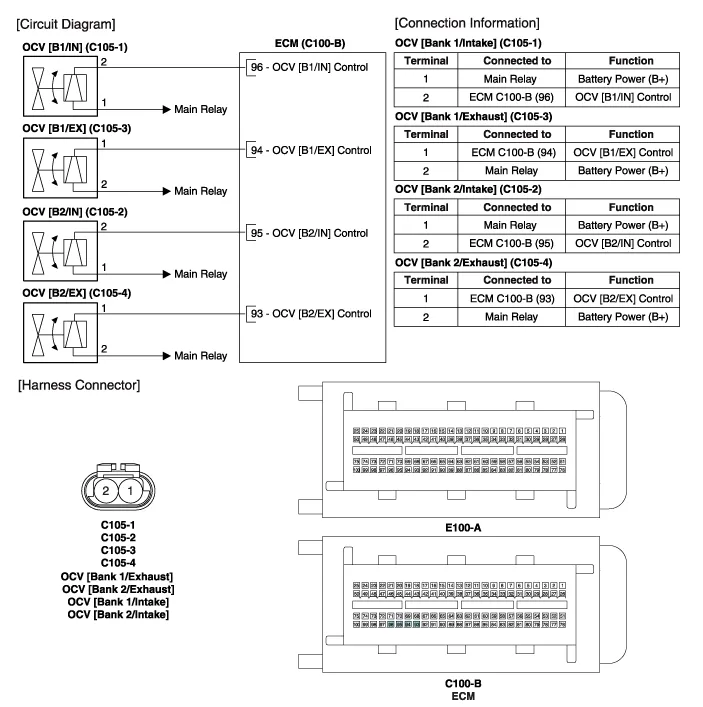

Circuit Diagram

❮CVVT Oil Control Valve (OCV) Troubleshooting

Signal Waveform

CVVT Oil Control Valve (OCV) Repair procedures❯

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the OCV connector. 3. Measure resistance between the OCV terminals 1 and 2. 4.
