Components

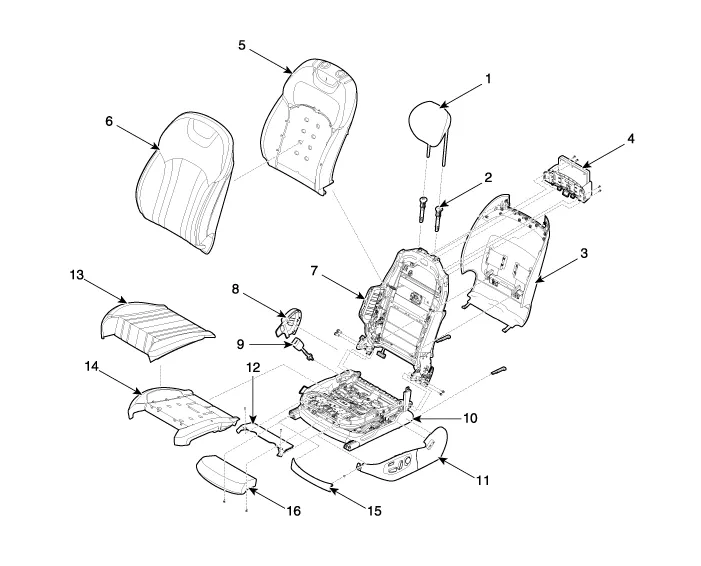

[Monitor Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Rear monitor assembly
5. Front seat back pad
6. Front seat back cover
7. Front seat back frame assembly
8. Front seat shield inner cover
9. Front seat belt buckle
10. Front seat cushion frame assembly
11. Front seat outer shield
12. Front cushion extension lower cover
13. Front seat cushion cover
14. Front seat cushion pad
15. Front seat center shield cover
16. Front seat cushion extension cushion modules

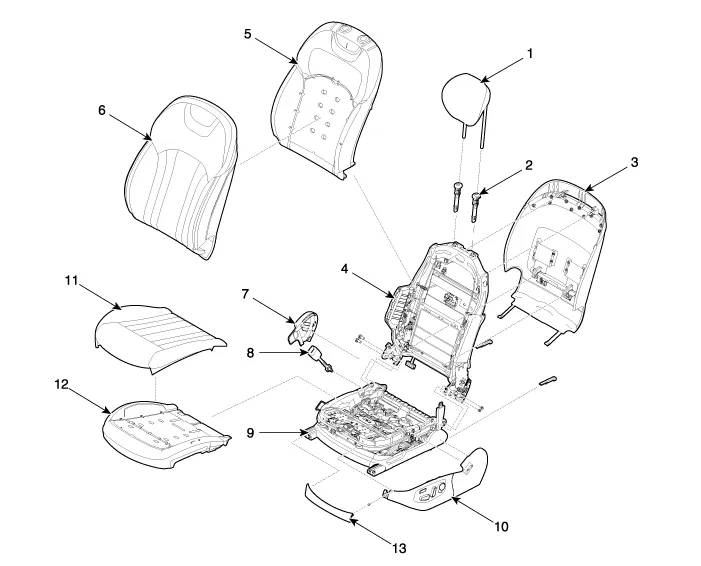

[General Type]

1. Front seat headrest
2. Front seat headrest guide
3. Front seat back board
4. Front seat back frame assembly
5. Front seat back pad
6. Front seat back cover
7. Front seat shield inner cover
8. Front seat belt buckle
9. Front seat cushion frame assembly
10. Front seat outer shield cover
11. Front seat cushion cover
12. Front seat cushion pad
13.Front seat front shield cover

    Component Location 1. Front seat assembly
