Hyundai Genesis (DH): Cylinder Head Assembly / Components and Components Location
| Components |

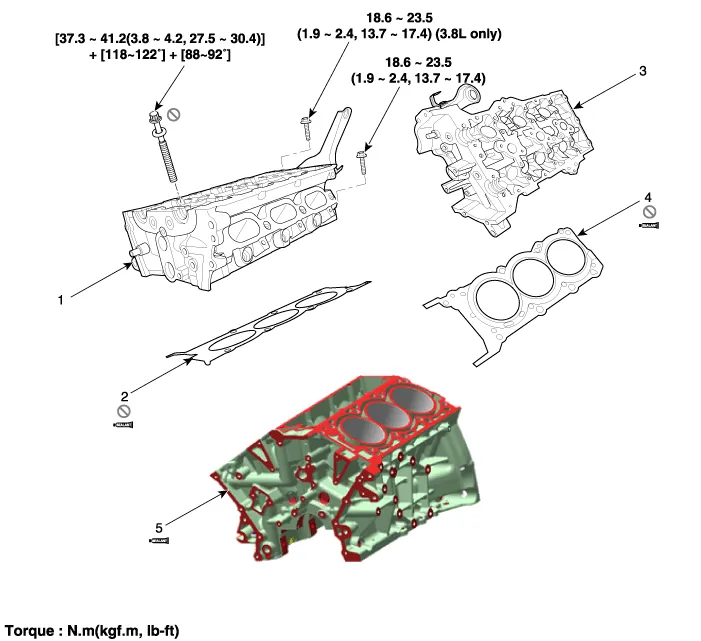

| 1. RH cylinder head 2. RH cylinder head gasket 3. LH cylinder head | 4. LH cylinder head gasket 5. Cylinder block |

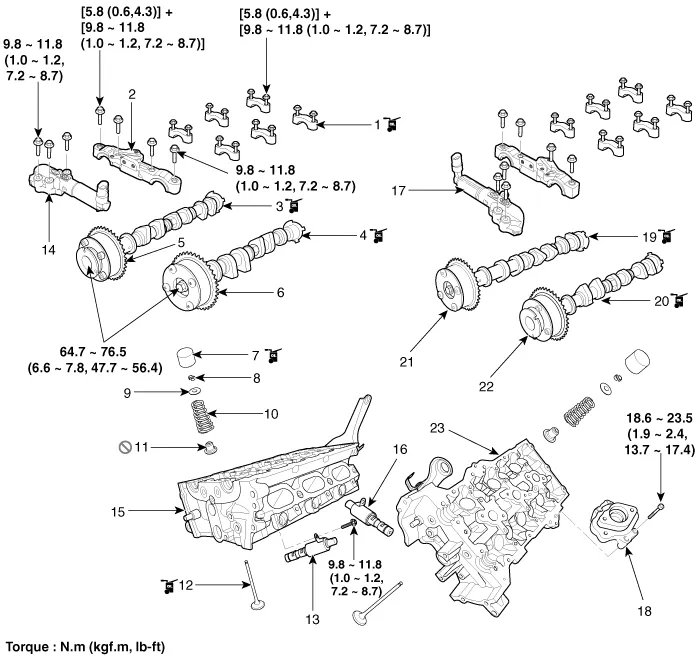

| 1. Camshaft bearing cap 2. Camshaft thrust bearing cap 3. RH exhaust camshaft 4. RH intake camshaft 5. RH exhaust CVVT assembly 6. RH intake CVVT assembly 7. Mechanical lash adjuster (MLA) 8. Retainer lock | 9. Retainer 10. Valve spring 11. Valve stem seal 12. Valve 13. RH intake camshaft OCV 14. RH exhaust camshaft OCV 15. RH cylinder head 16. LH intake camshaft OCV | 17. LH exhaust camshaft OCV 18. Fuel pump bracket 19. LH intake camshaft 20. LH exhaust camshaft 21. LH intake CVVT assembly 22. LH exhaust CVVT assembly 23. LH cylinder head |
Inspection Valve Clearance Inspection and Adjustment Inspect and adjust the valve clearance when the engine is cold (Engine coolant temperature : 20
