Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Windshield Wiper/Washer / Components and Components Location

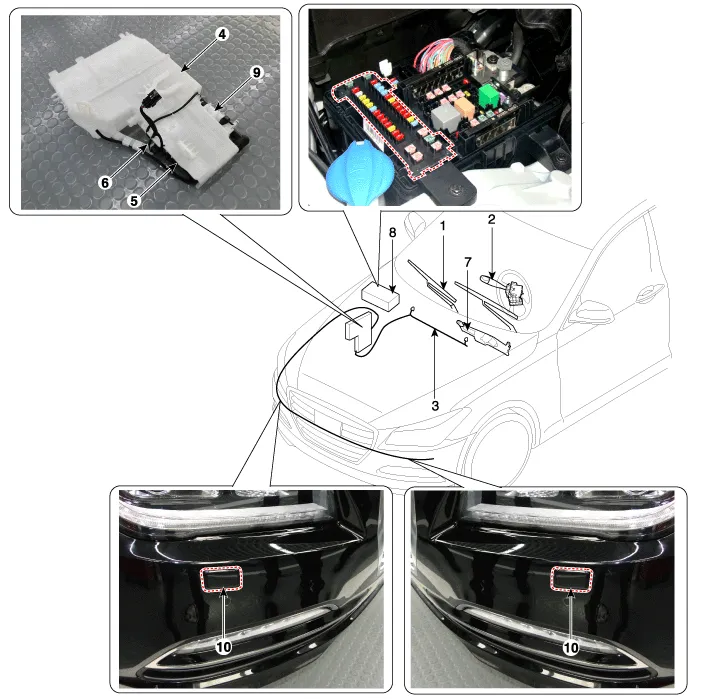

Component Location

1. Windshield wiper arm & blade
2. Wiper & washer switch
3. Windshield washer hose & nolzzle
4. Washer reservoir
5. Washer motor
6. Washer fluid level sensor
7. Wiper motor & linkage assembly
8. Wiper/Washer relay (Built - in Metal core block PCB)
9. Head lamp washer motor
10. Head lamp waher actuator

    Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the steering column upper shroud (A). (Refer to Body - "Steering Column Shroud Panel") 3.
