Hyundai Genesis (DH): Fuel Delivery System / Fuel Pressure Sensor (FPS) Schematic Diagrams

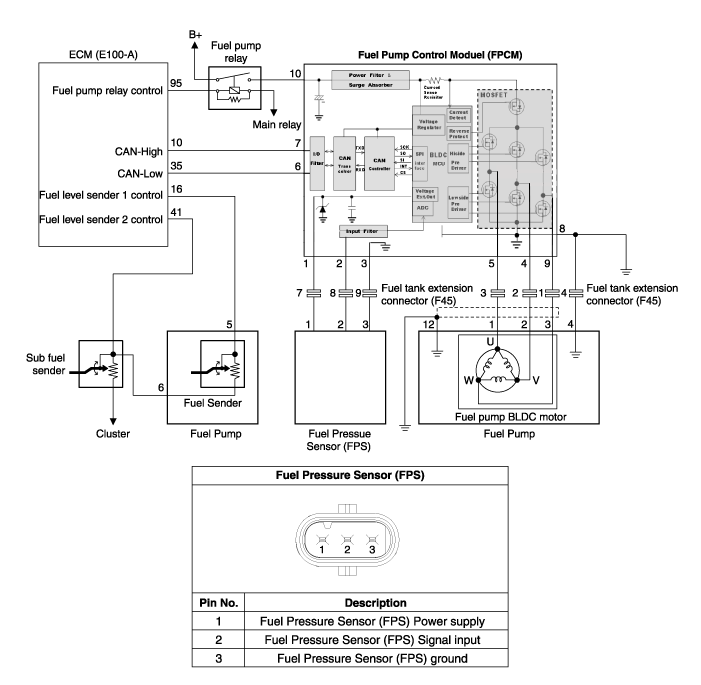

| Circuit Diagram |
Specification Pressure(kPa)Output Voltage(V)500.36002.511004.5
Fail-Safe Mode ItemFail-SafeDuty (%)85 If the fuel pressure sensor malfunctions, it enters fail safe mode. This means that the fuel pressure rises to match the increasing value of the current level and the pressure in the low pressure fuel line remains static despite the rising fuel pressure.
