Hyundai Genesis: Front Seat / Front Seat Back Cover Repair procedures

Replacement

Put on gloves to prevent hand injuries.

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.
Remove the front seat rear shield outer cover.
(Refer to Front Seat - "Front Seat Shield Outer Cover")
3.
Remove the front seat headrest (A) by pulling it upward.

4.
Remove the front seat lower protector (A).

5.

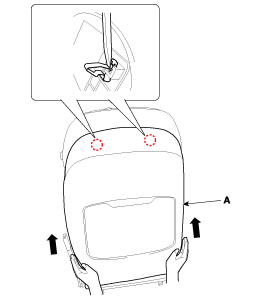

Remove the front seat back board (A).

Grasp the both lower sides of back board with hands and then remove it in the direction of the arrow.
Be careful not to damage the fixing clips.

6.
Remove the front seat air ventilation seat back duct (A).

7.
Remove the protector (A) from the front seat back frame.

8.
Using a screwdriver or remover, remove the front seat headrest guides (A) by pulling them upwards.


? How to remove the headrest guide
Twist the headrest guide to pull it out.


Be careful not to damage the steel clip (B).

9.
Remove the front seat back cover (A) from the front seat back frame.

10.
After removing the velcro tape (A) and hog-ring clips (B) on the front of seat back and remove the front seat back cover (C).

Make sure that the sponge insert wire is not dislocated.

11.
Install in the reverse order of removal.

Make sure that the connectors are connected completely
Replace any damaged clips.
To prevent wrinkles, make sure that the cover (B) is stretched evenly before connecting the hog-ring clips (A).
Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).

Front Seat Back Cover Components and Components Location
Component Location 1. Front seat back cover ...

Front Seat Cushion Cover Components and Components Location
Component Location 1. Front seat cushion cover ...
