Hyundai Genesis: Battery / For best battery service

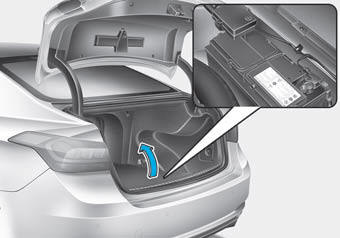

The battery is in the trunk.

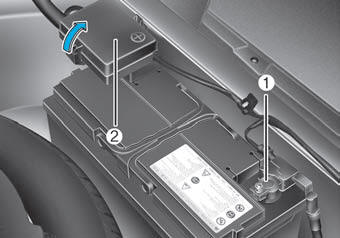

When replacing the battery, disconnect the negative (-) cable (1) and remove the positive (+) battery fuse box (2).

  • Keep the battery securely mounted.
  • Keep the battery top clean and dry.
  • Keep the terminals and connections clean, tight, and coated with petroleum jelly or terminal grease.
  • Rinse any spilled acid from the battery immediately with a solution of water and baking soda.
Battery
Jump starting can be dangerous if done incorrectly. Follow the jump starting procedure in this section to avoid serious injury or damage to your vehicle. If in doubt about how to properly ju ...

Battery recharging
By battery charger Your vehicle has a maintenance-free, calcium-based battery. If the battery becomes discharged in a short time (because, for example, the headlights or interior lights ...
