Hyundai Genesis (DH): Power Door Locks / Components and Components Location

Hyundai Genesis (DH) 2013-2016 Service Manual / Body Electrical System / Power Door Locks / Components and Components Location

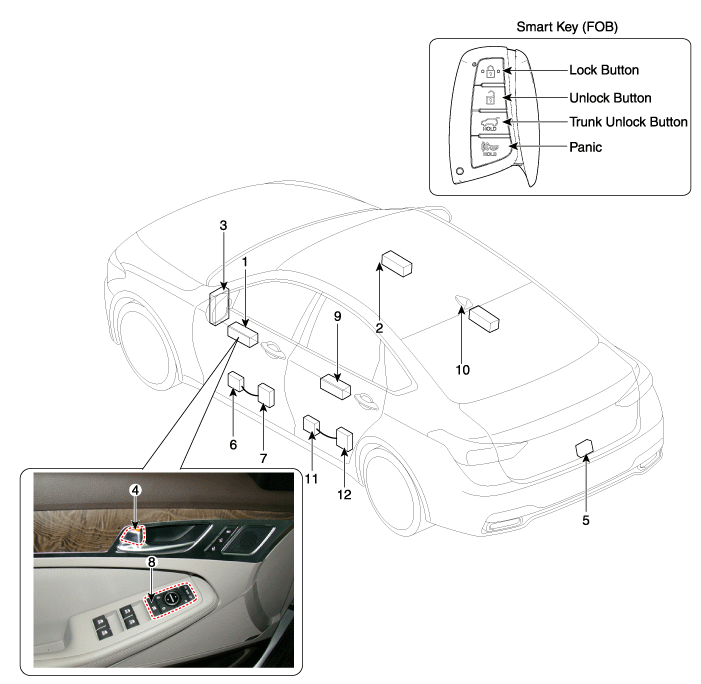

Component Location

1. DDM (Driver Door Module)
2. ADM (Assist Door Module)
3. IGPM (Integrated Gateway Power Control Module)
4. Door lock knob
5. Trunk lid actuator
6. Front soft closing actuator (SCA)
7. Front door lock actuator
8. Door lock switch
9. RLDM (Rear Left Door Module)
10. RRDM (Rear Right Door Module)
11. Rear soft closing actuator (SCA)
12. Rear door lock actuator

    Description System Overview The larger the size of the door, the harder it is to close it. Quite often we see people driving with a door not completely closed.
