Hyundai Genesis (DH): Hydraulic System / Components and Components Location

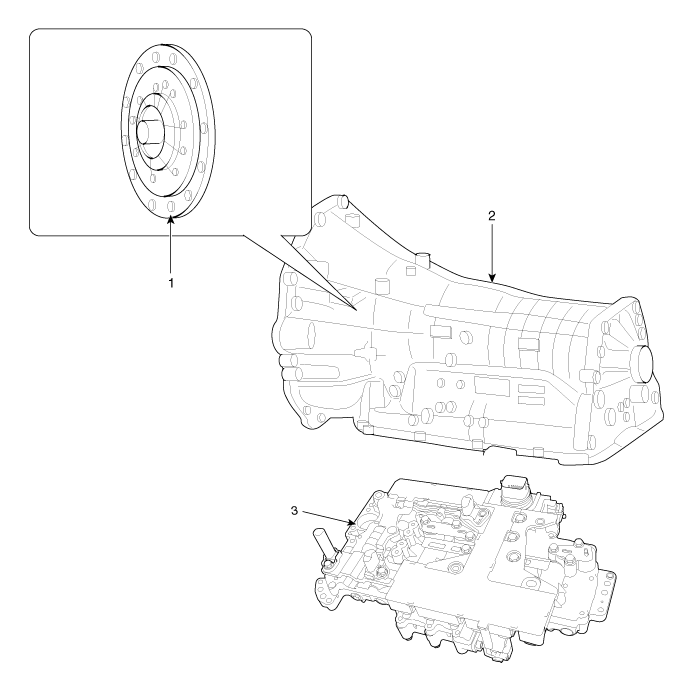

| Components Location |
| 1. Oil pump assembly 2. Automatic transmission | 3. Valve body assembly |
Description The hydraulic system consists of oil, an oil filter, an oil pump, and a valve body (valves and solenoid valves). The oil pump is powered by the engine.
Description The oil pump rotation generates the hydraulic pressure needed for the lubrication of various parts of the automatic transmission and operation of the clutch and brakes.
